MGW9C 3D Printed Linear Rails Interchangeable Type Linear Carriage

MGW9C 3D Printed Linear Rails Interchangeable Type Linear Carriage

Brand Name:	OEM
Model Number:	MGW7C
MOQ:	10
Price:	1-100 USD
Delivery Time:	1-7 work days
Payment Terms:	T/T,L/C,D/A,D/P,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

DE1924083895474

Series:

MGW-Enlarged Width Type

Model Size(mm):

9 Mm

No. Of Blocks Per Rail:

Rail Mounting Type:

R- Mounting From Top

Rail Length(mm):

Max 1000mm

Preload Class:

Z0- Very Light Preload , ZF- Light Clearancer

Material:

Std- Carbon Steel , M- Stainless Steel

Dust Protection:

SS-standard

Y -Symmetrical (E1＝E2) First Hole Dimension:

Y= Symmetrical （E1=E2)

Installation:

Easy

Application:

CNC Machines, 3D Printer

Smoothness:

Smooth

Packaging Details:

Small or with carton box, Bulk order with Wooden box

Supply Ability:

100000 pcs / per month

Highlight:

MGW9C 3D Printed Linear Rails

MGW9C Linear Motion Guide Rail

Interchangeable Type 3D Printed Linear Rails

Product Description

①Interchangeable Type Miniature Linear Guideway MGW9C Linear Carriage

The MGW9C Linear Carriage, a part of the miniature linear guideway series, is designed to meet the demands of small - scale, precision - oriented applications.

Compact and Lightweight Design: With its compact structure and light - weight build, it is highly suitable for miniaturized equipment where space is at a premium. This design also aids in reducing the overall weight of the machinery, contributing to energy - efficient operation.​

High Precision and Smooth Operation: It offers high - precision linear motion, ensuring that the moving parts can be accurately positioned. The smooth operation is achieved through advanced manufacturing techniques and high - quality components. This not only enhances the performance of the equipment but also reduces wear and tear, extending the lifespan of the carriage.​

Widened Rail Design: The widened rail design significantly boosts the torque load capacity, allowing for single - axis use in many applications. This feature makes it more versatile and capable of handling various load requirements.

②Model Number of MG Series

Note:1.The bottom seal is available for MGN & MGW 9, 12,14.15.
2. MG5 is only supplied with outer recirculation module.

③Construction of MGW Series

1.Rolling circulation system: Block, rail, ball, end cap and retainer [except size 2).
2.Lubrication system: Grease nipple is available for MGW14, 15, lubricated by grease gun.
3.MGW3, 7, 9, 12 are lubricated by the hole at the side of the end cap.
4.Dust protection system: End seal (except size2), bottom seal (optional size 9,12,14,15], cap (size12,14,15).

④Features
1. Tiny and light weight, suitable for miniature equipment.

2. Gothic arch contact design can sustain loads from all directions and offer highrigidity and

high accuracy

3. Steel balls are held by a miniature retainer to avoid balls from falling out, evenwhen the

blocks are removed from the rail.

4.Interchangeable types are available in certain precision grades.

Block: we offers two types of linear guideways, flange and square types

Rail: we offers standard top mounting type

Model No.	Block length(mm)	Preload classes	Bolt size	Weight(kg)
MGW7C	31.2	Z0/ZF/Z1	4-M3x3	0.02
MGW7H	41	Z0/ZF/Z1	4-M3x3	0.029
MGW9C	39.3	Z0/ZF/Z1	4-M3x3	0.04
MGW9H	50.7	Z0/ZF/Z1	4-M3x3	0.057
MGW12C	46.1	Z0/ZF/Z1	4-M3x3.6	0.071
MGW12H	60.4	Z0/ZF/Z1	4-M3x3.6	0.103
MGW15C	54.8	Z0/ZF/Z1	4-M4x4.2	0.143
MGW15H	73.8	Z0/ZF/Z1	4-M4x4.2	0.215

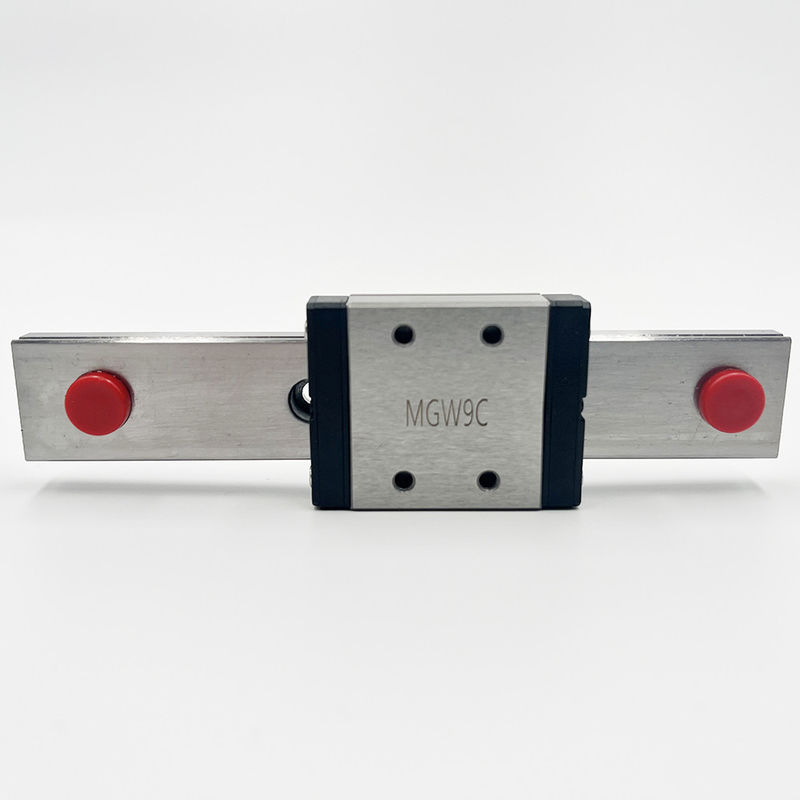

⑤Actual product photo

MGW9C 3D Printed Linear Rails Interchangeable Type Linear Carriage 2

⑥Measurement drawing

⑦We also can provide the OEM service on the block color

MGW9C 3D Printed Linear Rails Interchangeable Type Linear Carriage 5
