| Brand Name: | HIMIN |
| Model Number: | MGW9H |
| MOQ: | 10 |
| Price: | 1-100 USD |
| Delivery Time: | 1-7 work days |
| Payment Terms: | T/T,L/C,D/A,D/P,Western Union |

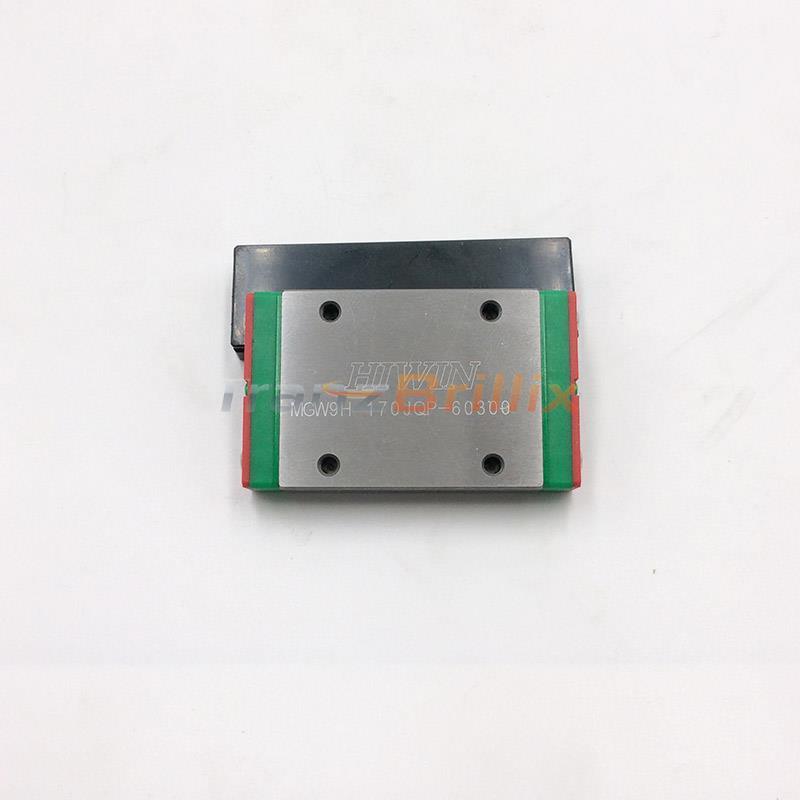

As a flagship product of HIWIN's renowned motion control series, the MGW9H Miniature Linear Guideway redefines precision in electronic automation applications. This advanced slide guide actuator module combines HIWIN's decades of engineering excellence with cutting-edge motion technology, delivering unparalleled performance for high-tech equipment.
The MGW9H incorporates HIWIN's proprietary precision bearing system, ensuring buttery-smooth linear motion perfect for sensitive electronic manufacturing and inspection processes. Its compact yet robust design features HIWIN's signature contamination-resistant seals, protecting critical components while maintaining optimal performance in cleanroom and industrial environments.
Ideal for semiconductor equipment, PCB handling systems, and precision assembly modules, this motion solution exemplifies HIWIN's commitment to innovation. The guideway's thermal-stable construction and vibration-damping characteristics make it particularly valuable for optical alignment and micro-positioning applications.
With HIWIN's global reputation for reliability and immediate availability from our worldwide stock, the MGW9H delivers the perfect combination of precision, durability, and performance that professionals expect from the industry's most trusted motion control brand.
Note:1.The bottom seal is available for MGN & MGW 9, 12,14.15.1.Rolling circulation system: Block, rail, ball, end cap and retainer [except size 2).
2.Lubrication system: Grease nipple is available for MGW14, 15, lubricated by grease gun.
3.MGW3, 7, 9, 12 are lubricated by the hole at the side of the end cap.
4.Dust protection system: End seal (except size2), bottom seal (optional size 9,12,14,15], cap (size12,14,15).
| Model No. | Block length(mm) | Preload classes | Bolt size | Weight(kg) |
| MGW7C | 31.2 | Z0/ZF/Z1 | 4-M3x3 | 0.02 |
| MGW7H | 41 | Z0/ZF/Z1 | 4-M3x3 | 0.029 |
| MGW9C | 39.3 | Z0/ZF/Z1 | 4-M3x3 | 0.04 |
| MGW9H | 50.7 | Z0/ZF/Z1 | 4-M3x3 | 0.057 |
| MGW12C | 46.1 | Z0/ZF/Z1 | 4-M3x3.6 | 0.071 |
| MGW12H | 60.4 | Z0/ZF/Z1 | 4-M3x3.6 | 0.103 |
| MGW15C | 54.8 | Z0/ZF/Z1 | 4-M4x4.2 | 0.143 |
| MGW15H | 73.8 | Z0/ZF/Z1 | 4-M4x4.2 | 0.215 |
