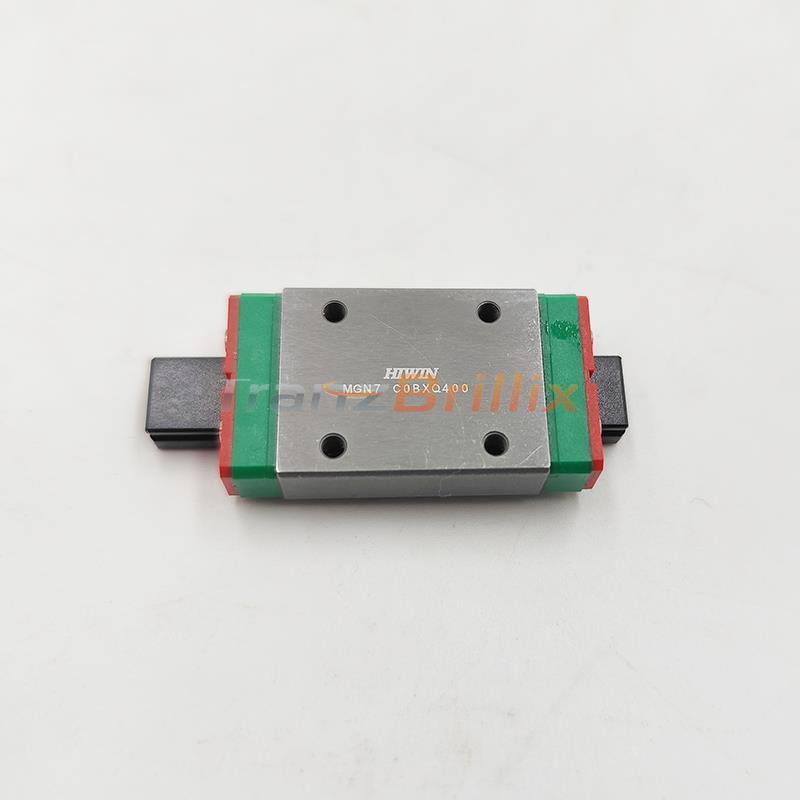

MGN7H 3D Printed Linear Rails Stainless Steel Smooth Hiwin Rail

Name: MGN7H 3D Printed Linear Rails Stainless Steel Smooth Hiwin Rail
Brand: Nanjing Tibi Ai Import and Export Trading Co., Ltd.
SKU: MGN7H
Price: 50.00 USD
Availability: InStock

Brand Name:	HIWIN
Model Number:	MGN7H
MOQ:	10
Price:	1-100 USD
Delivery Time:	1-7 work days
Payment Terms:	T/T,L/C,D/A,D/P,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA TAIWAN

Certification:

DE1924083895474

Series:

MGN

Model Size(mm):

7 Mm

No. Of Blocks Per Rail:

Rail Mounting Type:

R- Mounting From Top

Rail Length(mm):

Max 600mm

Preload Class:

Z0- Very Light Preload , ZF- Light Clearancer

Material:

Std- Carbon Steel , M- Stainless Steel

Dust Protection:

SS-standard

Y -Symmetrical (E1＝E2) First Hole Dimension:

Y= Symmetrical （E1=E2)

Installation:

Easy

Application:

CNC Machines, 3D Printer

Smoothness:

Smooth

Packaging Details:

Small or with carton box, Bulk order with Wooden box

Supply Ability:

100000 pcs / per month

Highlight:

Smooth 3D Printed Linear Rails

MGN7H mgn linear rail

MGN7H 3D Printed Linear Rails

Product Description

①HIWIN MGN7H Miniature Linear Guideway Stainless Steel Hiwin Rail

The HIWIN MGN7H Miniature Linear Guideway showcasesHIWIN's industry-leading expertise in
precision motion control, featuring a high-grade stainless steel construction for superior corrosion
resistance and durability. This 7mm compact rail system incorporatesHIWIN's patented recirculating ball
bearing technology, delivering ultra-high precision - perfect for medical, semiconductor, and cleanroom
applications.The HIWIN-engineered stainless steel provides exceptional wear resistance while meeting
strict hygiene standards, with specialized HIWIN wiper seals that block contaminants without increasing
friction. As a genuine HIWIN product, it features the brand's signature preload adjustment system for
zero-backlash performance and vibration-damped motion characteristics. The MGN7H maintainsHIWIN's
renowned quality in miniature automation,optical positioning, and micro-assembly systems, offering self-
lubricating options for maintenance-free operation.With HIWIN's global technical support and precision
manufacturing heritage, this guideway represents the gold standard in miniature linear motion solutions
for demanding industries.

②drawing of MGN7H

MGN7H 3D Printed Linear Rails Stainless Steel Smooth Hiwin Rail 0

③Model Number of MG Series

Note:1.The bottom seal is available for MGN & MGW 9, 12,14.15.
2. MG5 is only supplied with outer recirculation module.

④Construction of MGN Series

1.Rolling circulation system: Block, rail, end cap and retainer

2.Lubrication system: Grease nipple is available for MGN15, lubricated by grease gun.

3.Dust protection system: End seal, bottom seal (optional size 9,12,15), cap (size12,15)

⑤Features
1. Tiny and light weight, suitable for miniature equipment.

2. Gothic arch contact design can sustain loads from all directions and offer highrigidity and

high accuracy

3. Steel balls are held by a miniature retainer to avoid balls from falling out, evenwhen the

blocks are removed from the rail.

4.Interchangeable types are available in certain precision grades.

Block: we offers two types of linear guideways, flange and square types

Rail: we offers standard top mounting type

model No.	block length(mm)	preload classes	bolt size	weight(kg)
MGN7C	22.5	Z0/ZF/Z1	M20.4P6L	0.010
MGN7H	30.8	Z0/ZF/Z1	M20.4P6L	0.015
MGN9C	28.9	Z0/ZF/Z1	M30.5P8L	0.016
MGN9H	39.9	Z0/ZF/Z1	M30.5P8L	0.026
MGN12C	34.7	Z0/ZF/Z1	M30.5P8L	0.034
MGN12H	45.4	Z0/ZF/Z1	M30.5P8L	0.054
MGN15C	42.1	Z0/ZF/Z1	M30.5P10L	0.059
MGN15H	58.8	Z0/ZF/Z1	M30.5P10L	0.092

⑥Actual product photo

⑦Measurement drawing

⑧HIWIN series

⑧top product recommendation
