MGW12H 3D Printed Linear Rails Cnc Guide Rails Accurate For Measuring Equipments

MGW12H 3D Printed Linear Rails Cnc Guide Rails Accurate For Measuring Equipments

Brand Name:	OEM
Model Number:	MGW7C
MOQ:	10
Price:	1-100 USD
Delivery Time:	1-7 work days
Payment Terms:	T/T,L/C,D/A,D/P,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

DE1924083895474

Series:

MGW-Enlarged Width Type

Model Size(mm):

12 Mm

No. Of Blocks Per Rail:

Rail Mounting Type:

R- Mounting From Top

Rail Length(mm):

Max 1000mm

Preload Class:

Z0- Very Light Preload , ZF- Light Clearancer

Material:

Std- Carbon Steel , M- Stainless Steel

Dust Protection:

SS-standard

Y -Symmetrical (E1＝E2) First Hole Dimension:

Y= Symmetrical （E1=E2)

Installation:

Easy

Application:

CNC Machines, 3D Printer

Smoothness:

Smooth

Packaging Details:

Small or with carton box, Bulk order with Wooden box

Supply Ability:

100000 pcs / per month

Highlight:

MGW12H 3D Printed Linear Rails

MGW12H cnc guide rails

Accurate 3D Printed Linear Rails

Product Description

①MGW12H Stainless Steel Miniature Linear Guideway For Measuring Equipments

The MGW12H miniature linear guideway is meticulously engineered to excel in the realm of measuring equipments.One of its standout features is the premium stainless steel construction. This material selection imparts remarkable durability and corrosion resistance. Whether in a laboratory setting with potential chemical exposures or in field measurements under varying weather conditions, it remains unscathed, guaranteeing long - term reliable performance.

In terms of design, it combines compactness with robustness. The precisely machined components ensure high - precision linear movement, which is of utmost importance for accurate measurements. The smooth gliding motion minimizes errors caused by vibrations or jerks, allowing for highly repeatable and dependable results.​

With a widened rail and optimized structure, it can handle significant loads while maintaining stability. This makes it suitable for complex measuring setups where multiple components and forces are at play.​

Overall, the MGW12H linear guideway is the go - to choice for professionals in the measurement industry, providing the precision, durability, and versatility needed to push the boundaries of accurate data acquisition

②Model Number of MG SeriesNote:1.The bottom seal is available for MGN & MGW 9, 12,14.15.

2. MG5 is only supplied with outer recirculation module.

③Construction of MGW Series

1.Rolling circulation system: Block, rail, ball, end cap and retainer [except size 2).
2.Lubrication system: Grease nipple is available for MGW14, 15, lubricated by grease gun.
3.MGW3, 7, 9, 12 are lubricated by the hole at the side of the end cap.
4.Dust protection system: End seal (except size2), bottom seal (optional size 9,12,14,15], cap (size12,14,15).

④Features
1. Tiny and light weight, suitable for miniature equipment.

2. Gothic arch contact design can sustain loads from all directions and offer highrigidity and

high accuracy

3. Steel balls are held by a miniature retainer to avoid balls from falling out, evenwhen the

blocks are removed from the rail.

4.Interchangeable types are available in certain precision grades.

Block: we offers two types of linear guideways, flange and square types

Rail: we offers standard top mounting type

Model No.	Block length(mm)	Preload classes	Bolt size	Weight(kg)
MGW7C	31.2	Z0/ZF/Z1	4-M3x3	0.02
MGW7H	41	Z0/ZF/Z1	4-M3x3	0.029
MGW9C	39.3	Z0/ZF/Z1	4-M3x3	0.04
MGW9H	50.7	Z0/ZF/Z1	4-M3x3	0.057
MGW12C	46.1	Z0/ZF/Z1	4-M3x3.6	0.071
MGW12H	60.4	Z0/ZF/Z1	4-M3x3.6	0.103
MGW15C	54.8	Z0/ZF/Z1	4-M4x4.2	0.143
MGW15H	73.8	Z0/ZF/Z1	4-M4x4.2	0.215

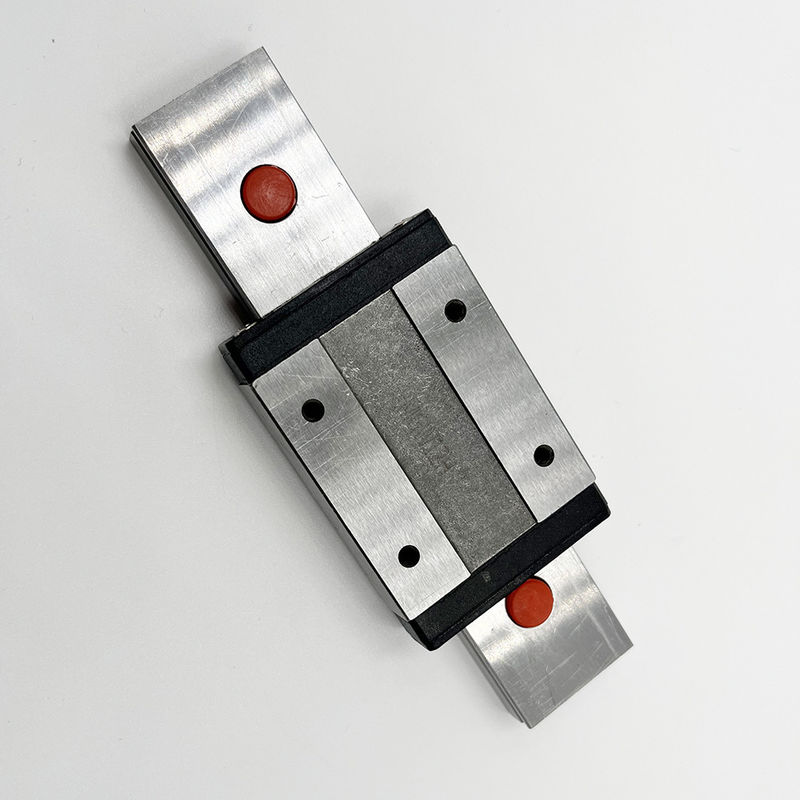

⑤Actual product photo

MGW12H 3D Printed Linear Rails Cnc Guide Rails Accurate For Measuring Equipments 2

⑥Measurement drawing

⑦We also can provide the OEM service on the block color

MGW12H 3D Printed Linear Rails Cnc Guide Rails Accurate For Measuring Equipments 5
