| Brand Name: | THK |
| Model Number: | HSR15R |
| MOQ: | 1 |
| Price: | Negotiable |
| Delivery Time: | Standard small orders usually require 5–10 working days after order confirmation; bulk quantities or special accuracy, preload, sealing or lubrication configurations typically require 3–6 weeks |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union |

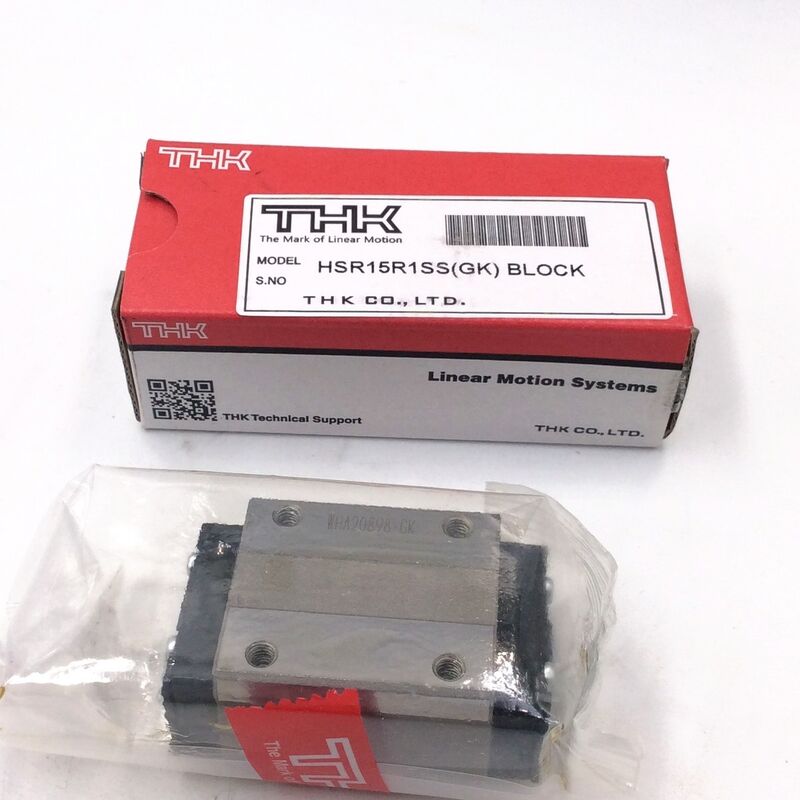

The original THK HSR15R is a size-15 narrow square-type LM guide block from the THK HSR full-ball linear guide series. Its compact width and tapped top mounting holes make it suitable for machine tables and automation assemblies where installation space is limited.
The HSR series provides equal load ratings in the radial, reverse-radial and lateral directions, supporting stable and rigid linear motion in CNC machines, machine tools, precision equipment and industrial automation systems.
This is a Block-only product page. The matching THK HSR15 LM rail is not included unless it is separately listed in the quotation.
HSR15R is the standard-length R-type block. It must not be confused with HSR15LR, which is the longer version with a different overall length, mounting pitch, weight and load rating.
| Assembly Height | 28 mm |
|---|---|
| Overall Block Width | 34 mm |
| Overall Block Length | 56.6 mm with UU or SS seal configuration |
| Mounting-Hole Pitch | 26 × 26 mm |
| Mounting Thread | 4 × M4, effective thread depth 5 mm |
| LM Block Weight | 0.18 kg |
Refer to the official THK HSR15R dimension drawing in the product image gallery when checking machine mounting space, mounting-hole positions and lubrication-port clearance.
| Symbol | Dimension Item | Value |
|---|---|---|
| L1 | Block Body Length | 38.8 mm |
| T | Dimension T | 6 mm |
| K | Dimension K | 23.3 mm |
| N | Dimension N | 8.3 mm |
| E | Dimension E | 5.5 mm |
| e0 | Side-Nipple Pilot-Hole Position | 3.2 mm |
| f0 | Side-Nipple Pilot-Hole Position | 7.9 mm |
| D0 | Pilot-Hole Diameter | 3 mm |
| H3 | Lubrication-Port Height | 4.7 mm |
| — | Standard Grease Nipple | PB1021B |
The 56.6 mm overall block length applies to the standard UU or SS sealing arrangement. Some optional lubrication or contamination-protection accessories may increase the total block length.
The two-block MA and MB values apply when two LM blocks are installed in close contact. Actual service life also depends on operating load, block spacing, rail spacing, mounting rigidity, speed, lubrication and shock conditions.
For replacement orders, please provide a clear photograph of the complete model marking or the equipment BOM. Current availability and delivery time will be confirmed according to the required quantity and configuration.
C0 medium preload is not available for HSR15R. Optional configurations are supplied according to the complete THK order designation and should not be treated as standard stock specifications.
Yes. This page is for an original THK HSR15R LM guide block. The exact configuration will be verified from the complete product marking or supplied photograph.
No. This is a Block-only product page. The THK HSR15 LM rail is supplied only when it is separately included in the quotation.
HSR15R is the standard-length narrow block with a 56.6 mm overall length. HSR15LR is the longer narrow block with a 74.6 mm overall length, a longer mounting pitch and higher load ratings.
No. Similar external dimensions do not establish compatibility. Different brands use different raceway geometry, ball-contact design and tolerance systems.
Provide the complete model marking or a clear photograph showing the side marking, block shape and end structure. We will help verify the accuracy, preload, sealing and lubrication configuration.
Please provide the quantity, complete model marking or a clear product photo, and the delivery country and postcode.
