| Brand Name: | HIWIN |
| Model Number: | MGNR12 |
| MOQ: | 5 |
| Price: | Negotiable |
| Delivery Time: | 3-7 work days; custom length or splicing: 7-15 work days bulk orders |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union |

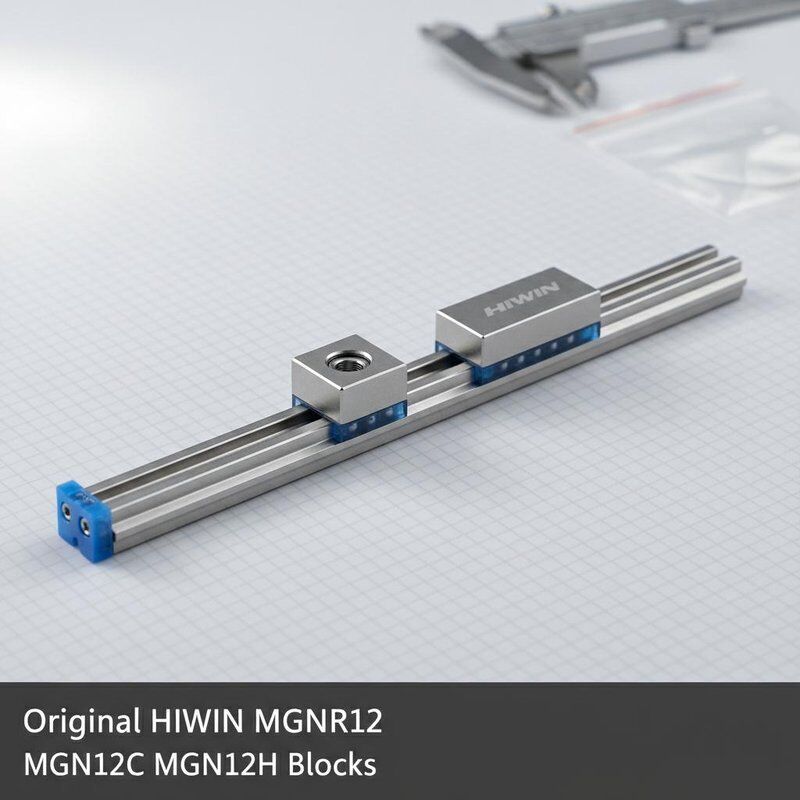

The Original HIWIN MGNR12 miniature linear guide rail is part of the HIWIN MG series compact linear guide system. This miniature linear guide rail is commonly matched with MGN12C and MGN12H blocks for 3D printers, compact automation equipment, measuring instruments and small precision positioning systems.
This page is for the MGNR12 rail only. If you need a complete rail and block set, please confirm the rail length, block model, block quantity, accuracy grade and preload requirement before quotation.
The MGNR12 rail is commonly used with the following original HIWIN MG series blocks:
| Block Model | Block Type | Load Type / Structure | Use Note |
|---|---|---|---|
| MGN12C | Compact block | Short carriage, compact structure | Suitable for limited installation space and light-load compact motion |
| MGN12H | Long block | Longer carriage, higher load capacity and better moment resistance | Suitable when higher rigidity and smoother motion are required within the same rail size |
Please confirm the block type, preload and accuracy grade before ordering. Same-brand HIWIN MG series rail and block can be matched after confirming size, accuracy grade and preload.
| Brand | HIWIN |
| Model | MGNR12 |
| Series | MG Series |
| Product Type | Miniature Linear Guide Rail |
| Rail Size | 12 mm |
| Matching Blocks | MGN12C, MGN12H |
| Accuracy Grade | C, H, P, subject to stock and quotation |
| Preload | ZF, Z0, ZA, subject to block requirement and availability |
| Rail Length | Standard length or custom cut length |
| Origin | Taiwan |
MGNR12 rails are usually used as short or medium-length miniature rails. If a special long-stroke layout is required, standard rail jointing, multi-piece rail jointing or custom rail splicing can be checked according to the installation drawing.
For joined rails, the rail ends can be prepared with matched grinding, joint marking and sequence numbering when technically suitable. Please provide the total travel length, single rail length limit, mounting hole requirement and installation layout before quotation.
For miniature rails, short lengths can usually be shipped by express courier or air freight. For long rails or bulk orders, the transportation method should be selected according to rail length, weight, destination country and delivery urgency.
For very long rails, rail splicing can also be discussed as an alternative solution to reduce transportation cost, packaging size and bending risk during delivery.
The HIWIN MG series is commonly used in compact and precision applications where corrosion resistance may be considered. If the rail will be used in humid air, condensation, outdoor equipment, washing areas, clean rooms, salt spray environments or corrosive surroundings, please inform us in advance.
Optional protection such as anti-rust oil, special coating, low-temperature black chrome or passivation can be checked according to the brand, model and actual supply condition.
Short MGNR12 rails can be packed in strong cartons or small wooden cases depending on order quantity and transportation method. Bulk orders and precision rails are recommended to be packed in plywood cases.
The rails should be fixed inside the package to reduce bending, collision, moisture and rust risk during transportation.
Cross-brand model references are for selection comparison only. Rails and blocks from different brands cannot be mixed. For replacement projects, replace the rail and block as a complete set from the same brand.
| Replacement Situation | Can It Be Used Directly? | Our Recommendation |
|---|---|---|
| Same brand, same series rail and block | Yes, after confirming size, accuracy grade and preload | Confirm the exact rail model, block model, rail length and installation requirement before ordering |
| Different brands with similar nominal size | No | Cross-brand references are only for model selection comparison |
| Rail from one brand and block from another brand | No | Rails and blocks from different brands cannot be mixed |
| Replacing another miniature guide brand | Not by single component replacement | Replace the rail and block as a complete set from the same brand |
Before quotation for a replacement project, please provide the existing rail model, block model, rail length, block quantity, accuracy grade, preload requirement and installation drawing. We will check the correct complete set solution before quotation.
Please send your required MGNR12 rail length, block model, block quantity, accuracy grade, preload requirement, surface treatment requirement, application and destination country. We will check stock, cutting options, delivery time, packing method and shipping cost for you.
