| Brand Name: | TranzBrillix |
| Model Number: | HGH25CA |
| MOQ: | 10 |
| Price: | 4.5-5 USD |
| Delivery Time: | 1-7 work days |
| Payment Terms: | T/T,L/C,D/A,D/P,Western Union |

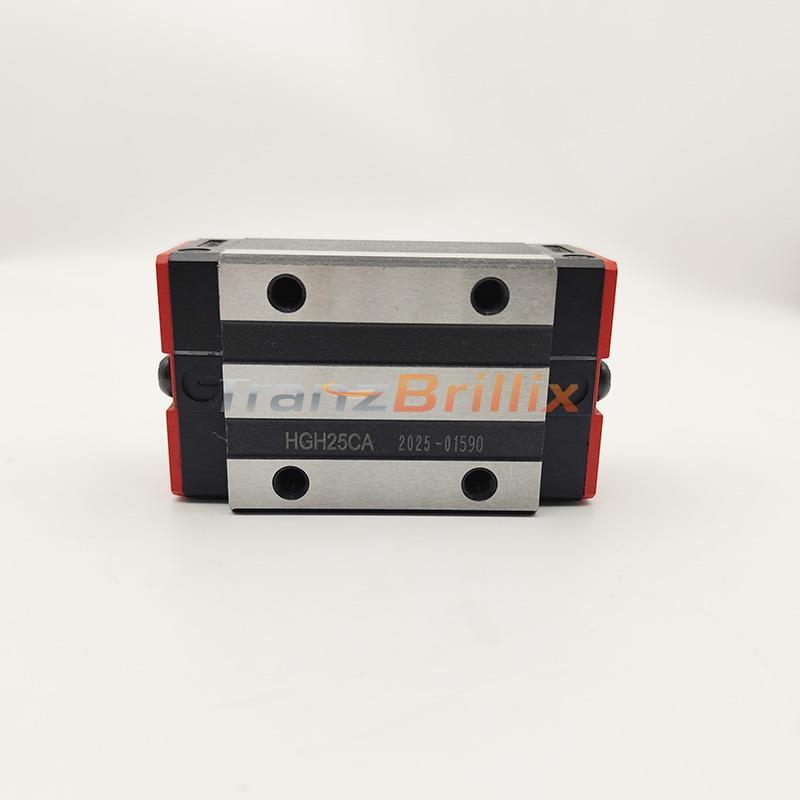

This 25mm linear guide block is engineered as a 100% interchangeable alternative to the HIWIN HGH25CA. It matches the original datasheet specifications for dimensions, load ratings (26.48 kN), and stiffness, making it an ideal cost-effective solution for CNC lathes, milling machines, and general automation.
Dimensions and load ratings comply with ISO standard series for Size 25.
| Dimensional & Mechanical Data | |
|---|---|
| Model Number | HGH25CA (Square Type / Heavy Load) |
| Nominal Rail Width (W) | 25 mm |
| Basic Dynamic Load Rating (C) | 26.48 kN |
| Basic Static Load Rating (C0) | 36.49 kN |
| Static Moment (MR) | 0.63 kN-m |
| Static Moment (MP / MY) | 0.42 kN-m |
| Mounting Bolt Size | M6 x 20 |
| Weight (Block) | 0.59 kg |
| Weight (Rail) | 3.21kg/m |
⚠️ Critical: Blocks are shipped with anti-rust oil, NOT lubricant. You must grease them before use.
Included in Box: 1x HGH25CA Linear Block, 1x Grease Nipple (M6).
Protection: Vacuum sealed in anti-rust bag, individually boxed.
*Disclaimer: HIWIN® is a registered trademark of HIWIN Technologies Corp. This product is an aftermarket replacement part manufactured by YourBrand and is not affiliated with HIWIN. All technical data is provided for compatibility reference.
