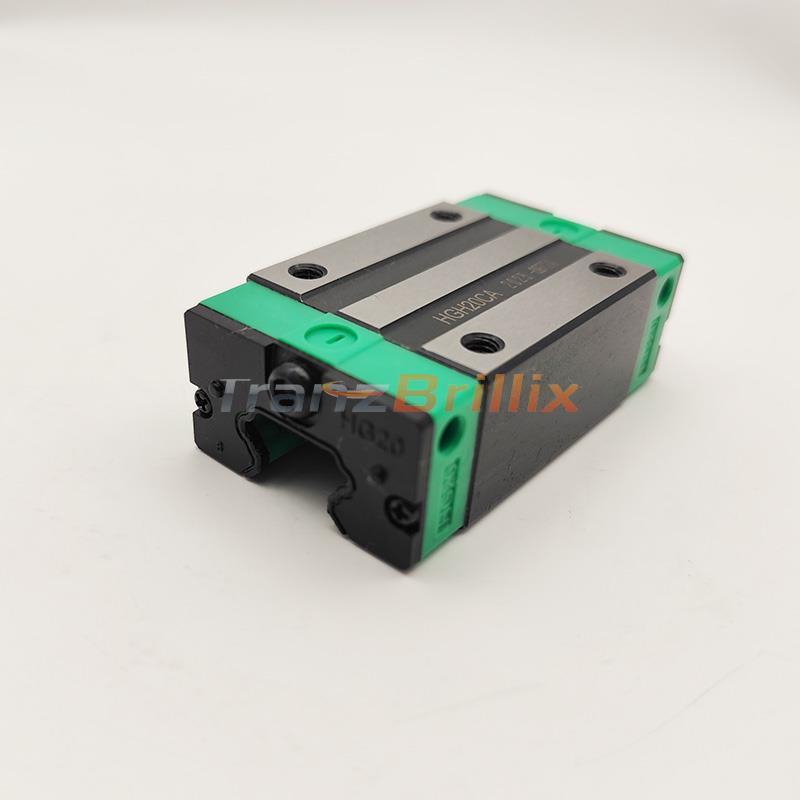

This 20mm linear guide block is the Long Type (Super Heavy Load) version, engineered as a 100% interchangeable alternative to the HIWIN HGH20HA. It features a longer body for increased load capacity (21.18 kN) and higher rigidity, making it ideal for CNC Z-axis and vertical automation applications.
Dimensions and load ratings comply with ISO standard series for Size 20 (Long).
| Dimensional & Mechanical Data | |
|---|---|
| Model Number | HGH20HA (Square Type / Super Heavy Load) |
| Nominal Rail Width (W) | 20 mm |
| Basic Dynamic Load Rating (C) | 21.18 kN |
| Basic Static Load Rating (C0) | 35.90 kN |
| Static Moment (MR) | 0.48 kN-m |
| Static Moment (MP / MY) | 0.37 kN-m |
| Mounting Bolt Size | M5 x 16 |
⚠️ Critical: Blocks are shipped with anti-rust oil, NOT lubricant. You must grease them before use.
Included in Box: 1x HGH20HA Linear Block, 1x Grease Nipple (M5).
Protection: Vacuum sealed in anti-rust bag, individually boxed.
