| Brand Name: | TranzBrillix |
| Model Number: | HGH15CA |
| MOQ: | 10 |
| Price: | 2.07-4 USD |
| Delivery Time: | 1-7 work days |
| Payment Terms: | T/T,L/C,D/A,D/P,Western Union |

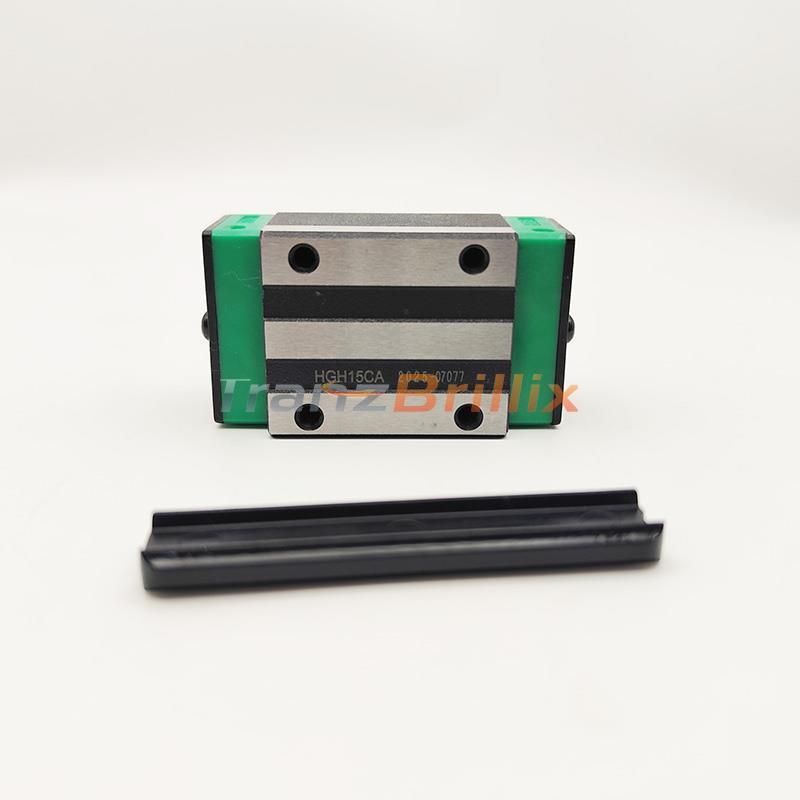

Compatible Replacement for HIWIN HGH15CA
This 15mm linear guide block is engineered as a 100% interchangeable alternative to the HIWIN HGH15CA. It matches the original datasheet specifications for dimensions, load ratings (11.38 kN), and stiffness, making it an ideal cost-effective solution for 3D printers, light automation, and desktop CNC routers.
Engineering Data / Performance Specs
Dimensions and load ratings comply with ISO standard series for Size 15.
| Dimensional & Mechanical Data | |
|---|---|
| Model Number | HGH15CA (Square Type / Heavy Load) |
| Nominal Rail Width (W) | 15 mm |
| Basic Dynamic Load Rating (C) | 11.38 kN |
| Basic Static Load Rating (C0) | 16.97 kN |
| Static Moment (MR) | 0.15 kN-m |
| Static Moment (MP / MY) | 0.08 kN-m |
| Mounting Bolt Size | M4 x 16 |
Structure & Features
Lubrication Guide
⚠️ Critical: Blocks are shipped with anti-rust oil, NOT lubricant. You must grease them before use.
Installation & Mounting
Accuracy & Preload Class
Packaging
Included in Box: 1x HGH15CA Linear Block, 1x Grease Nipple (M4).
Protection: Vacuum sealed in anti-rust bag, individually boxed.
*Disclaimer: HIWIN® is a registered trademark of HIWIN Technologies Corp. This product is an aftermarket replacement part manufactured by YourBrand and is not affiliated with HIWIN. All technical data is provided for compatibility reference.
