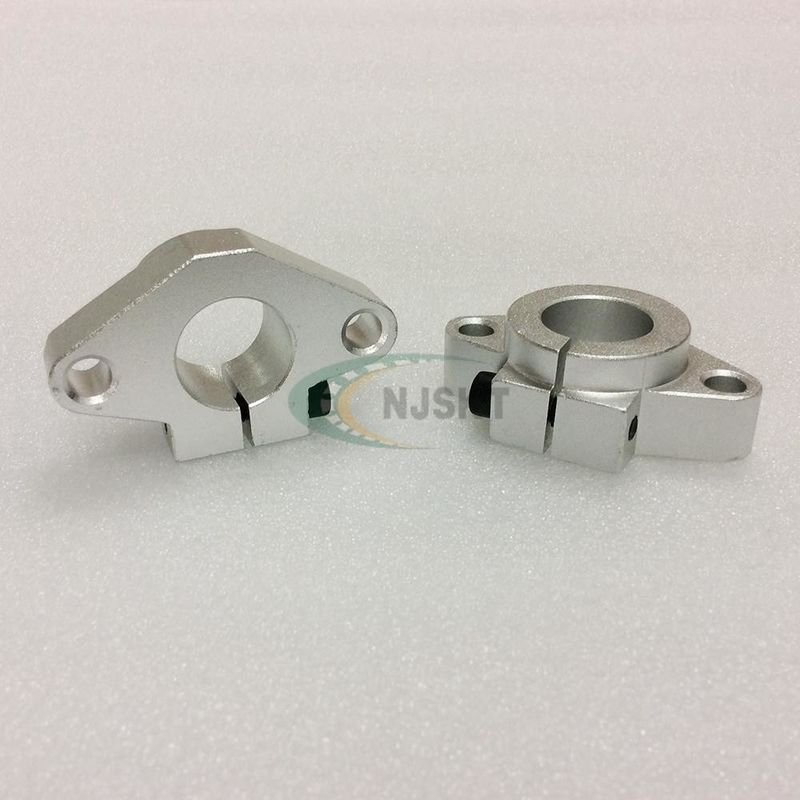

SHF30 Linear Shaft Supports 30mm Aluminum End Support Block

    The SHF30 Flanged Linear Shaft Support Block delivers superior stability for 30mm motion systems through its innovative flanged design that enhances mounting security and load distribution. The extended flange surface provides multiple mounting points for robust attachment, significantly improving resistance to torsional forces while maintaining precise shaft alignment. This flanged configuration allows direct installation onto machine frames or mounting plates without requiring additional adapters, simplifying assembly while ensuring positive location accuracy. The broad contact area created by the flange design effectively dampens vibrations and absorbs operational stresses, making these supports particularly valuable in high-load applications or systems experiencing dynamic forces. Precision machining of both the flange and bore guarantees perfect perpendicularity between mounting surface and shaft axis, critical for maintaining smooth linear motion. The flanged geometry also enables space-efficient integration in compact machine designs while providing enhanced support compared to standard cylindrical blocks. Engineers will appreciate how this flanged solution combines the benefits of secure mounting with the precision required for demanding 30mm shaft applications, from heavy-duty automation to precision positioning systems. The design's inherent stability makes it ideal for applications where vibration control and long-term alignment accuracy are paramount, offering a reliable foundation for critical motion components in industrial machinery and equipment.

② Features of linear shaft supports

Feature 1: Tool-Free Slit Design
The innovative slit design of the shaft supports enables quick, tool-free installation and secure connection to shafts without causing surface damage or compromising structural integrity, ensuring hassle-free assembly and disassembly.

Feature 2: Cost-Efficient Aluminum Extrusion Manufacturing
The economy series shaft supports utilize advanced aluminum extrusion technology, offering a lightweight yet durable solution at a significantly reduced cost. While precision is marginally lower compared to fully machined alternatives, this series maintains sufficient accuracy to meet the functional requirements of most applications, delivering exceptional value for budget-conscious projects.

Feature 3: Fine-Adjustment Through-Hole Tolerance
The precision-engineered clearance in the installation through-hole allows for on-site micro-adjustments, enabling users to achieve optimal shaft alignment and positioning during final assembly. This feature eliminates the need for additional components, streamlining setup in dynamic operational environments.

Feature 4: Standardized Stock Availability
Available in inner diameters ranging from 6mm to 60mm (exact specifications provided in the product catalog), the economy series shaft supports are maintained as standardized stock items. This ensures rapid order fulfillment with same-day shipping capabilities, minimizing downtime and accelerating project timelines for time-sensitive applications.This combination of user-centric design, affordability, adaptability, and rapid availability positions these shaft supports as a versatile solution for both industrial and commercial linear motion systems.
