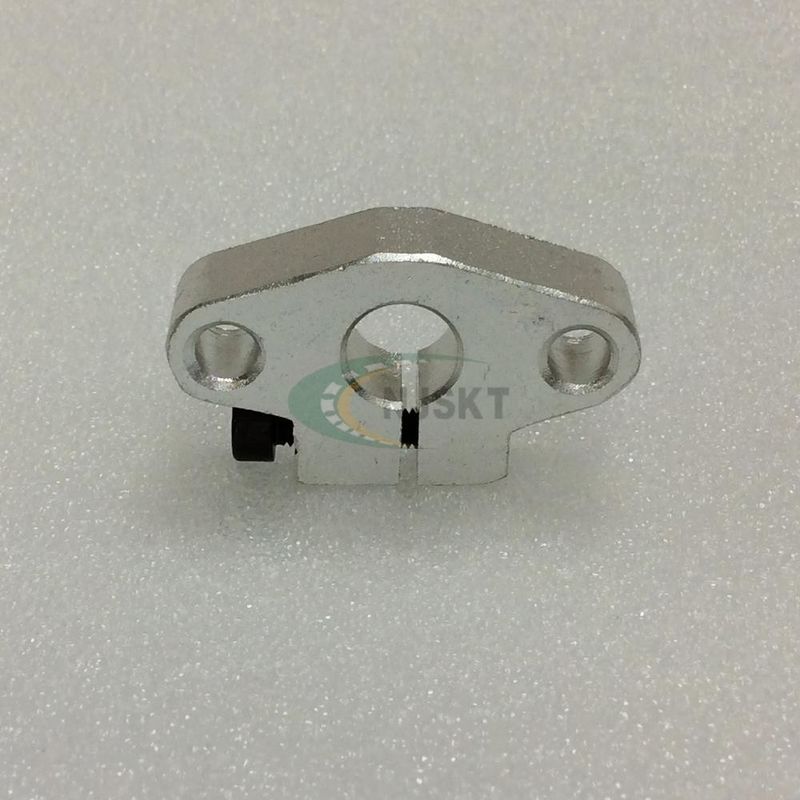

Flanged Type SHF25 Linear Shaft Supports 25mm End Support Block

    The SHF25 Flanged Type Linear Shaft Support Block offers a robust and versatile mounting solution for 25mm linear motion systems, featuring a distinctive flanged design that enhances stability and simplifies installation. The integrated flange provides a secure mounting platform that distributes loads evenly while offering multiple fastening options for flexible system integration. This flanged configuration ensures positive alignment and increased resistance to moment forces, making these supports particularly effective in applications requiring enhanced structural rigidity. The design allows for direct surface mounting without additional brackets, reducing assembly time and minimizing potential misalignment issues. Precision-machined to exacting standards, these flanged supports maintain perfect shaft alignment while offering improved resistance to vibration and operational stresses. The flanged construction proves especially valuable in heavy-duty applications or systems with significant lateral forces, where standard supports might compromise performance. With their balanced combination of mounting convenience and mechanical stability, these flanged support blocks excel in industrial automation, material handling systems, and precision machinery where reliable shaft fixation is critical. The thoughtful flange geometry provides both functional advantages and space-efficient installation, making the SHF25 an intelligent choice for engineers seeking to optimize their linear motion systems with components that deliver both performance and installation convenience.

② Features of linear shaft supports

Feature 1: Tool-Free Slit Design
The innovative slit design of the shaft supports enables quick, tool-free installation and secure connection to shafts without causing surface damage or compromising structural integrity, ensuring hassle-free assembly and disassembly.

Feature 2: Cost-Efficient Aluminum Extrusion Manufacturing
The economy series shaft supports utilize advanced aluminum extrusion technology, offering a lightweight yet durable solution at a significantly reduced cost. While precision is marginally lower compared to fully machined alternatives, this series maintains sufficient accuracy to meet the functional requirements of most applications, delivering exceptional value for budget-conscious projects.

Feature 3: Fine-Adjustment Through-Hole Tolerance
The precision-engineered clearance in the installation through-hole allows for on-site micro-adjustments, enabling users to achieve optimal shaft alignment and positioning during final assembly. This feature eliminates the need for additional components, streamlining setup in dynamic operational environments.

Feature 4: Standardized Stock Availability
Available in inner diameters ranging from 6mm to 60mm (exact specifications provided in the product catalog), the economy series shaft supports are maintained as standardized stock items. This ensures rapid order fulfillment with same-day shipping capabilities, minimizing downtime and accelerating project timelines for time-sensitive applications.This combination of user-centric design, affordability, adaptability, and rapid availability positions these shaft supports as a versatile solution for both industrial and commercial linear motion systems.
