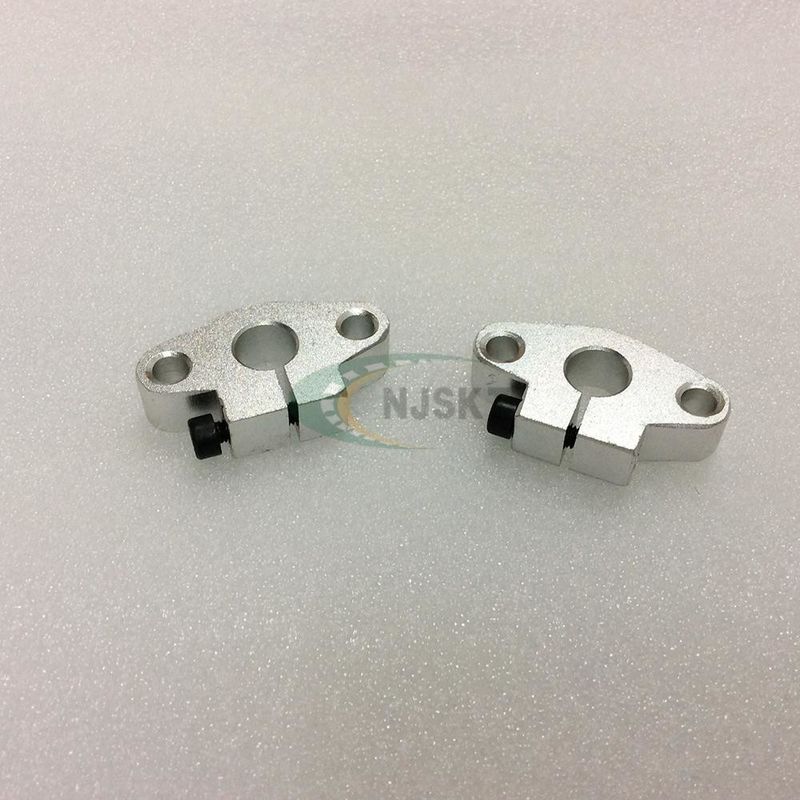

Aluminum SHF20 Linear Shaft Supports 20mm Shaft End Support Blocks

    The SHF16 Linear Shaft Supports represent a superior mounting solution for 16mm linear motion systems, where the exceptional properties of aluminum alloy deliver outstanding performance advantages. These precision supports harness aluminum's natural characteristics to create an optimal balance between reduced mass and structural integrity, making them ideal for applications where weight savings directly translate to improved efficiency and responsiveness. The high-grade aluminum construction provides inherent corrosion resistance that withstands challenging environments while maintaining dimensional stability across temperature variations. Engineered for precision, these supports feature meticulously machined surfaces that ensure perfect shaft alignment and smooth linear motion, with aluminum's natural vibration-damping qualities enhancing operational stability. The material's excellent thermal conductivity helps regulate temperature fluctuations in dynamic systems, while its impressive strength-to-weight ratio supports substantial loads without adding unnecessary bulk. Particularly effective in automated manufacturing, robotics, and high-speed positioning systems, these aluminum supports contribute to energy-efficient operation by minimizing moving mass. The alloy's machinability allows for tight manufacturing tolerances that guarantee reliable performance with various bearing types. Maintenance-free and easy to install, the SHF16 supports demonstrate how advanced aluminum alloys can meet rigorous industrial demands while offering the practical benefits of lightweight construction, making them an intelligent choice for engineers designing next-generation motion systems that prioritize both performance and efficiency.

② Features of linear shaft supports

Feature 1: Tool-Free Slit Design
The innovative slit design of the shaft supports enables quick, tool-free installation and secure connection to shafts without causing surface damage or compromising structural integrity, ensuring hassle-free assembly and disassembly.

Feature 2: Cost-Efficient Aluminum Extrusion Manufacturing
The economy series shaft supports utilize advanced aluminum extrusion technology, offering a lightweight yet durable solution at a significantly reduced cost. While precision is marginally lower compared to fully machined alternatives, this series maintains sufficient accuracy to meet the functional requirements of most applications, delivering exceptional value for budget-conscious projects.

Feature 3: Fine-Adjustment Through-Hole Tolerance
The precision-engineered clearance in the installation through-hole allows for on-site micro-adjustments, enabling users to achieve optimal shaft alignment and positioning during final assembly. This feature eliminates the need for additional components, streamlining setup in dynamic operational environments.

Feature 4: Standardized Stock Availability
Available in inner diameters ranging from 6mm to 60mm (exact specifications provided in the product catalog), the economy series shaft supports are maintained as standardized stock items. This ensures rapid order fulfillment with same-day shipping capabilities, minimizing downtime and accelerating project timelines for time-sensitive applications.This combination of user-centric design, affordability, adaptability, and rapid availability positions these shaft supports as a versatile solution for both industrial and commercial linear motion systems.
