Ball Screw
Created with Pixso. SFK02002 Cnc Linear Motion Ball Screw 20mm Diameter Reliable

SFK02002 Cnc Linear Motion Ball Screw 20mm Diameter Reliable

Brand Name: TBI
Model Number: SFK02002
MOQ: 1
Price: 1-100 USD
Delivery Time: 1-7 work days
Payment Terms: T/T,L/C,D/A,D/P,Western Union
Detail Information
Place of Origin:
CHINA TAIWAN
Certification:
DE1924083895474
Series:
SFK
Diameter:
20mm
Lead(mm):
2mm
Accuracy Grade:
C3,C5,C7
Overall Length Of Shaft(mm):
Max 4000mm
Preload Grade:
P0
Material:
Screw: S55C Nut: SCM415H Ball: SUJ2
Threading Direction:
Right
Flange Type:
Double Cutting
Proudct Code:
F: Rolled
Application:
Delicate Application In Industrial Application, Machine Tool And Automation Application
Installation:
Easy
Packaging Details:
Small or with carton box, Bulk order with Wooden box
Supply Ability:
100000 pcs / per month
Highlight:

SFK02002 Linear Motion Ball Screw

,

Reliable Linear Motion Ball Screw

,

Reliable 20mm ball screw

Product Description
①TBI Ball Screw SFK02002 20mm Diameter Ball Screw For Cnc Ball Screw Price

     The TBI Ball Screw SFK02002 offers an outstanding combination of precision engineering and cost-effective performance for CNC applications, delivering professional-grade motion control at a competitive price point. This 20mm diameter ball screw exemplifies TBI's ability to balance affordability with industrial-grade quality, providing machine operators with reliable linear motion that doesn't compromise on accuracy or durability. Designed specifically for CNC machinery, it features optimized ball recirculation that ensures smooth operation while minimizing vibration – crucial for achieving superior surface finishes in machining operations. The robust construction withstands the rigors of continuous industrial use, maintaining precise positioning repeatability even after extended service periods. TBI's value-engineered approach is evident in how this model delivers essential performance characteristics like reduced backlash and efficient power transmission without unnecessary premium features that drive up costs. The carefully calibrated preload provides just the right amount of resistance for most CNC applications, offering excellent value for both small workshops and larger manufacturing operations. While positioned as an economical choice, the SFK02002 still benefits from TBI's stringent quality control processes, ensuring consistent performance that professionals can depend on. Its competitive pricing makes precision motion technology more accessible without sacrificing the core reliability that has made TBI a trusted name in industrial automation. This ball screw represents a smart investment for CNC users who need dependable performance at a price point that makes sense for their operation.


②Drawing of SFK02002
SFK02002 Cnc Linear Motion Ball Screw 20mm Diameter Reliable 0
③ModeNumber of ball screw series
SFK02002 Cnc Linear Motion Ball Screw 20mm Diameter Reliable 1
SFK02002 Cnc Linear Motion Ball Screw 20mm Diameter Reliable 2
④Construction of SFK Series
SFK02002 Cnc Linear Motion Ball Screw 20mm Diameter Reliable 3
⑤Features of Ball Screw-Internal Return Series
1. Internal return design saves more space.
2. Small driving torque only one third of ACEM ball screw.
3. High accuracy guaranteed.
4. Fine feed, can be controlled within 0.1μm.
5. No backlash, High rigidity.


customized machined service.

NJSKT is able to provide end machining of the ball screws according to your drawing. To help you see recommended end machinings for different types of housings. we will also machine custom ends to match a customer-supplied drawing. This image is of a drawing of the typical end machining dimensions that would be required for us to machine the ends. Other configurations are possible to machine as long as they are clearly drawn.

SFK02002 Cnc Linear Motion Ball Screw 20mm Diameter Reliable 4

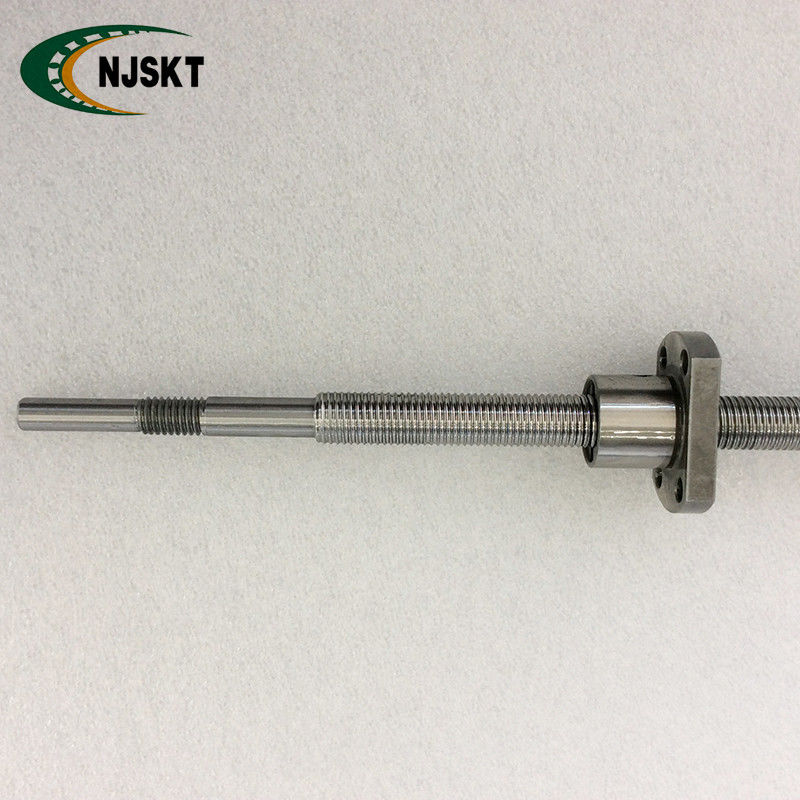

Actual product photo

SFK02002 Cnc Linear Motion Ball Screw 20mm Diameter Reliable 5


Measurement drawing
SFK02002 Cnc Linear Motion Ball Screw 20mm Diameter Reliable 6

SFK02002 Cnc Linear Motion Ball Screw 20mm Diameter Reliable 7
