HIWIN RGW30HC Linear Guide Rail Slide Rails Guide Rail Track For Machine

Name: HIWIN RGW30HC Linear Guide Rail Slide Rails Guide Rail Track For Machine
Brand: Nanjing Tibi Ai Import and Export Trading Co., Ltd.
SKU: RGW30HC
Price: 50.00 USD
Availability: InStock

Brand Name:	HIWIN
Model Number:	RGW30HC
MOQ:	10
Price:	1-100 USD
Delivery Time:	1-7 work days
Payment Terms:	T/T,L/C,D/A,D/P,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA TAIWAN

Certification:

DE1924083895474

Series:

Model Size(mm):

30mm

No. Of Blocks Per Rail:

Rail Mounting Type:

R- Mounting From Top

Rail Length(mm):

Max 4000mm

Preload Class:

Z0- Light Preload , ZA- Medium Preload, ZB-Heavy Preload

Material:

SNCM220 Carbon Steel

Dust Protection:

SS-standard

Y -Symmetrical (E1＝E2) First Hole Dimension:

Y= Symmetrical （E1=E2)

Installation:

Easy

Application:

Automation Systems, Transportation Equipment, CNC Machining Centers, Heavy Duty Cutting Machines

Smoothness:

Smooth

Packaging Details:

Small or with carton box, Bulk order with Wooden box

Supply Ability:

100000 pcs / per month

Highlight:

RGW30HC Linear Guide Rail

RGW30HC hiwin linear block

Linear Guide Rail For Machine

Product Description

①HIWIN RGW30HC Linear Guideway Machine Slide Rails Guide Rail Track

In the era of advanced automation, the HIWIN RGW30HC Linear Guideway Machine Slide Rails Guide Rail Track is a game - changer. Automation systems across industries demand components that offer precision, reliability, and efficiency, and this guide rail track delivers on all fronts.In the manufacturing sector, automated production lines rely on smooth and accurate linear motion. The RGW30HC enables robotic arms and automated machining tools to move precisely along the rails, ensuring that each manufacturing step is carried out with the highest level of accuracy. This leads to improved product quality and reduced waste, as errors in movement are minimized.

In the field of warehousing and logistics automation, automated storage and retrieval systems (AS/RS) are becoming increasingly popular. The RGW30HC provides the stability and smooth operation required for these systems to function effectively. Goods can be moved in and out of storage locations quickly and accurately, optimizing the use of space and speeding up the overall logistics process. Moreover, in the packaging industry, automated packaging machines use the guide rail track to ensure that products are packaged consistently and efficiently. The precise movement provided by the RGW30HC allows for high - speed packaging operations without compromising on the quality of the packaging.

Overall, the HIWIN RGW30HC Linear Guideway is an essential part of modern automation, enabling various automated systems to perform at their best, enhancing productivity, and driving the progress of the automation industry.

②Drawing of RGW30HC

③Model Number of RG Series

④Construction of RG Series

1.Rolling circulation system: Block, rail, end cap, Circulation path, rollers

2.Lubrication system: Grease nipple and piping joint

3.Dust protection system: End seal, bottom seal,bolt cap, double seals and scraper.


⑤Features of RG series
The new RG series from HIWIN features a roller as the rolling element instead of steel balls. The roller series offers super high rigidity and very high load capacities. The RG series is designed with a 45-degree angle of contact. Elastic deformation of the linear contact surface, during load, is greatly reduced thereby offering greater rigidity and higher load capacities in all 4 load directions.The RG series linear guideway offers high performance for high-precisionmanufacturing and achieving longer service life.
1. Optimal design
FEM analysis was performed to determine the optimal structure of the block and the rail. The unique design of the circulation path allows the RG series linear guideway to offer smoother linear motion.
2.Super high rigidity
The RG series is a type of linear guideway that uses rollers as the rolling elements. Rollers have a greater contact area thanballs so that the roller guideway features higher load capacityand greater rigidity. The figure shows the rigidity of a roller and a ball with equal volume.
3. Super high load capacity
With the four rows of rollers arranged at a contact angle of 45-degrees, the RG series linear guideway has equal load ratings in the radial, reverse radial and lateral directions.The RG series has a higher load capacity in a smaller size than conventional, ball-type linear guideways.
4. Operating life increased
Compare with the ball element, the contact pressure of rolling element is distributed on the line region. Therefore,stress concentration was reduced siginificantly and the RG series offers longer running life. The nominal life of RG seriescan be calculated by using Eq.

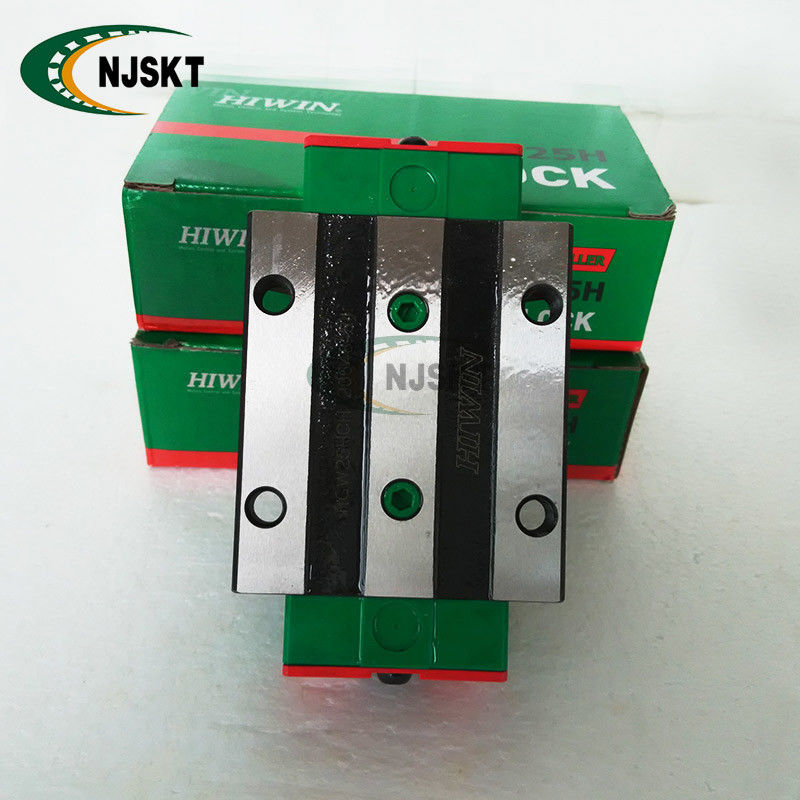

⑥Actual product photo

HIWIN RGW30HC Linear Guide Rail Slide Rails Guide Rail Track For Machine 3

⑦Measurement drawing

⑧HIWIN series
