HIWIN RGW20CC Linear Guide Rail System Heavy Duty Linear Bearing Slide Rails

Name: HIWIN RGW20CC Linear Guide Rail System Heavy Duty Linear Bearing Slide Rails
Brand: Nanjing Tibi Ai Import and Export Trading Co., Ltd.
SKU: RGW20CC
Price: 50.00 USD
Availability: InStock

Brand Name:	HIWIN
Model Number:	RGW20CC
MOQ:	10
Price:	1-100 USD
Delivery Time:	1-7 work days
Payment Terms:	T/T,L/C,D/A,D/P,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA TAIWAN

Certification:

DE1924083895474

Series:

Model Size(mm):

20mm

No. Of Blocks Per Rail:

Rail Mounting Type:

R- Mounting From Top

Rail Length(mm):

Max 4000mm

Preload Class:

Z0- Light Preload , ZA- Medium Preload, ZB-Heavy Preload

Material:

SNCM220 Carbon Steel

Dust Protection:

SS-standard

Y -Symmetrical (E1＝E2) First Hole Dimension:

Y= Symmetrical （E1=E2)

Installation:

Easy

Application:

Automation Systems, Transportation Equipment, CNC Machining Centers, Heavy Duty Cutting Machines

Smoothness:

Smooth

Packaging Details:

Small or with carton box, Bulk order with Wooden box

Supply Ability:

100000 pcs / per month

Highlight:

RGW20CC Linear Guide Rail System

RGW20CC Linear Bearing Slide Rails

Heavy Duty Linear Guide Rail System

Product Description

①HIWIN RGW20CC Linear Guideway Original Hiwin Heavy Duty Draw Slides

The HIWIN RGW20CC Linear Guideway represents the gold standard in heavy-duty linear motion technology, bearing the hallmark quality and innovation that have made HIWIN a globally recognized leader in precision engineering. As part of HIWIN's esteemed product lineage, this robust draw slide system exemplifies the brand's unwavering commitment to delivering reliable motion solutions for the most demanding industrial applications. The RGW20CC showcases HIWIN's engineering mastery through its optimized structural design, which achieves an exceptional balance between load capacity and smooth operation - a signature characteristic of HIWIN's premium linear components. Meticulously crafted to meet the brand's exacting standards, this guideway incorporates HIWIN's proprietary technologies developed through decades of research and real-world application experience. The system's superior durability and precision reflect HIWIN's philosophy of creating components that not only meet but exceed industry expectations for performance and longevity. Designed as part of HIWIN's comprehensive motion solution ecosystem, the RGW20CC benefits from the same rigorous quality control processes that have established the company as the preferred choice for manufacturers worldwide. Its versatile heavy-duty construction embodies HIWIN's deep understanding of diverse industrial challenges, offering engineers the confidence that comes with specifying authentic HIWIN technology. Whether deployed in high-precision automation systems, heavy machinery, or specialized industrial equipment, this linear guideway carries forward HIWIN's legacy of innovation and reliability - delivering the uncompromising performance that has made the HIWIN brand synonymous with excellence in motion control technology across global industries. The RGW20CC stands as a testament to HIWIN's position at the forefront of linear motion solutions, combining proven durability with the precision engineering that has defined the brand's reputation for generations.

②Drawing of RGW20CC

③Model Number of RG Series

④Construction of RG Series

1.Rolling circulation system: Block, rail, end cap, Circulation path, rollers

2.Lubrication system: Grease nipple and piping joint

3.Dust protection system: End seal, bottom seal,bolt cap, double seals and scraper.


⑤Features of RG series
The new RG series from HIWIN features a roller as the rolling element instead of steel balls. The roller series offers super high rigidity and very high load capacities. The RG series is designed with a 45-degree angle of contact. Elastic deformation of the linear contact surface, during load, is greatly reduced thereby offering greater rigidity and higher load capacities in all 4 load directions.The RG series linear guideway offers high performance for high-precisionmanufacturing and achieving longer service life.
1. Optimal design
FEM analysis was performed to determine the optimal structure of the block and the rail. The unique design of the circulation path allows the RG series linear guideway to offer smoother linear motion.
2.Super high rigidity
The RG series is a type of linear guideway that uses rollers as the rolling elements. Rollers have a greater contact area thanballs so that the roller guideway features higher load capacityand greater rigidity. The figure shows the rigidity of a roller and a ball with equal volume.
3. Super high load capacity
With the four rows of rollers arranged at a contact angle of 45-degrees, the RG series linear guideway has equal load ratings in the radial, reverse radial and lateral directions.The RG series has a higher load capacity in a smaller size than conventional, ball-type linear guideways.
4. Operating life increased
Compare with the ball element, the contact pressure of rolling element is distributed on the line region. Therefore,stress concentration was reduced siginificantly and the RG series offers longer running life. The nominal life of RG seriescan be calculated by using Eq.

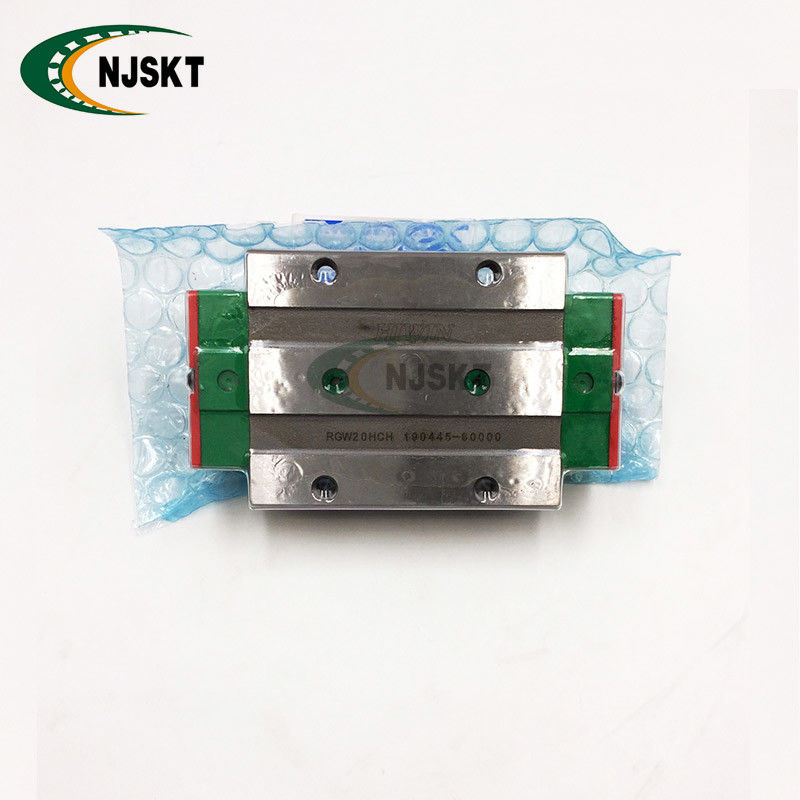

⑥Actual product photo

HIWIN RGW20CC Linear Guide Rail System Heavy Duty Linear Bearing Slide Rails 3

⑦Measurement drawing

⑧HIWIN series

⑨top product recommendation
