HIWIN RGH65HA Linear Guide Rail 65mm Size High Precision Reliable Motion Systems

Name: HIWIN RGH65HA Linear Guide Rail 65mm Size High Precision Reliable Motion Systems
Brand: Nanjing Tibi Ai Import and Export Trading Co., Ltd.
SKU: RGH65HA
Price: 50.00 USD
Availability: InStock

Brand Name:	HIWIN
Model Number:	RGH65HA
MOQ:	10
Price:	1-100 USD
Delivery Time:	1-7 work days
Payment Terms:	T/T,L/C,D/A,D/P,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA TAIWAN

Certification:

DE1924083895474

Series:

Model Size(mm):

65mm

No. Of Blocks Per Rail:

Rail Mounting Type:

R- Mounting From Top

Rail Length(mm):

Max 4000mm

Preload Class:

Z0- Light Preload , ZA- Medium Preload, ZB-Heavy Preload

Material:

SNCM220 Carbon Steel

Dust Protection:

SS-standard

Y -Symmetrical (E1＝E2) First Hole Dimension:

Y= Symmetrical （E1=E2)

Installation:

Easy

Application:

Automation Systems, Transportation Equipment, CNC Machining Centers, Heavy Duty Cutting Machines

Smoothness:

Smooth

Packaging Details:

Small or with carton box, Bulk order with Wooden box

Supply Ability:

100000 pcs / per month

Highlight:

RGH65HA Linear Guide Rail

RGH65HA linear rail types

65mm Size Linear Guide Rail

Product Description

①HIWIN RGH65HA Linear Guideway 65mm Hiwin Linear Guide And Block

The HIWIN RGH65HA Linear Guideway System stands as a testament to HIWIN's position as a global innovator in precision motion technology, combining decades of engineering expertise with cutting-edge design to deliver uncompromising performance. This 65mm heavy-duty linear guide solution embodies HIWIN's philosophy of creating robust, reliable motion systems that excel in the world's most demanding industrial environments. The RGH65HA series showcases HIWIN's mastery of roller guide technology, offering an optimal balance of rigidity and smooth motion that has become the hallmark of the brand's premium product lines. HIWIN's commitment to quality shines through in every aspect of this system, from its precision-ground components to its advanced sealing solutions - all developed through the company's continuous investment in research and real-world application knowledge. The guideway's design reflects HIWIN's holistic approach to motion control, where every element works in perfect harmony to deliver consistent performance across extended service life. As part of HIWIN's renowned product portfolio, the RGH65HA benefits from the same stringent manufacturing standards that have made the brand the preferred choice for machine builders seeking dependable, high-performance solutions. The system's adaptability across various industrial applications demonstrates HIWIN's deep understanding of diverse manufacturing challenges and its ability to develop versatile solutions without compromising on quality or reliability. Trusted by leading manufacturers worldwide, this linear guideway system continues HIWIN's tradition of pushing the boundaries of motion technology while maintaining the exceptional standards that have defined the brand for generations. Whether in heavy machining centers, automated production lines, or specialized industrial equipment, the RGH65HA Linear Guideway delivers the performance excellence that has made HIWIN synonymous with precision motion solutions across global industries.​

②Drawing of RGH65HA

③Model Number of RG Series

④Construction of RG Series

1.Rolling circulation system: Block, rail, end cap, Circulation path, rollers

2.Lubrication system: Grease nipple and piping joint

3.Dust protection system: End seal, bottom seal,bolt cap, double seals and scraper.


⑤Features of RG series
The new RG series from HIWIN features a roller as the rolling element instead of steel balls. The roller series offers super high rigidity and very high load capacities. The RG series is designed with a 45-degree angle of contact. Elastic deformation of the linear contact surface, during load, is greatly reduced thereby offering greater rigidity and higher load capacities in all 4 load directions.The RG series linear guideway offers high performance for high-precisionmanufacturing and achieving longer service life.
1. Optimal design
FEM analysis was performed to determine the optimal structure of the block and the rail. The unique design of the circulation path allows the RG series linear guideway to offer smoother linear motion.
2.Super high rigidity
The RG series is a type of linear guideway that uses rollers as the rolling elements. Rollers have a greater contact area thanballs so that the roller guideway features higher load capacityand greater rigidity. The figure shows the rigidity of a roller and a ball with equal volume.
3. Super high load capacity
With the four rows of rollers arranged at a contact angle of 45-degrees, the RG series linear guideway has equal load ratings in the radial, reverse radial and lateral directions.The RG series has a higher load capacity in a smaller size than conventional, ball-type linear guideways.
4. Operating life increased
Compare with the ball element, the contact pressure of rolling element is distributed on the line region. Therefore,stress concentration was reduced siginificantly and the RG series offers longer running life. The nominal life of RG seriescan be calculated by using Eq.

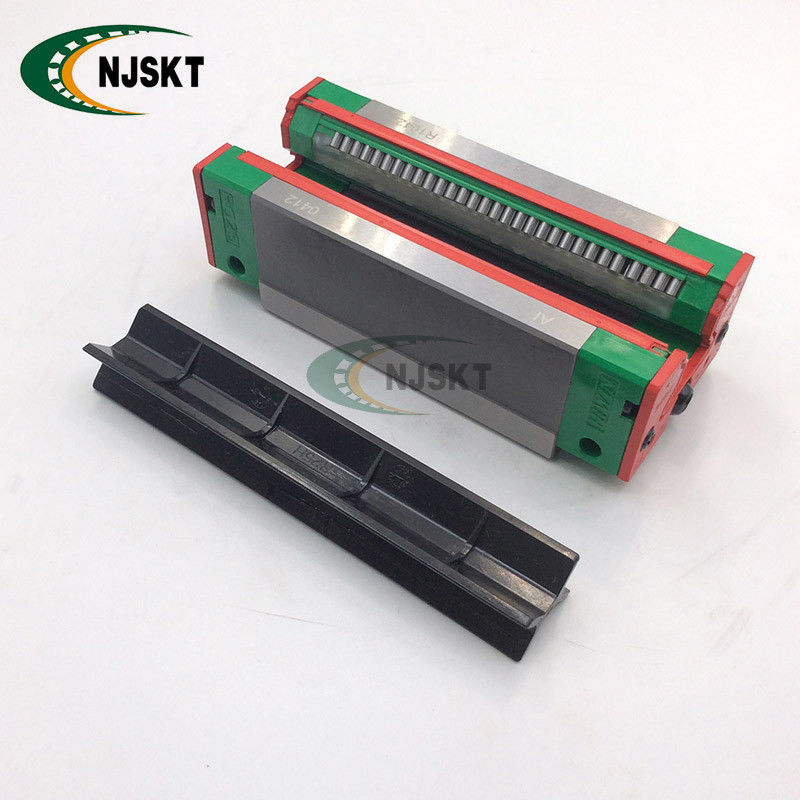

⑥Actual product photo

HIWIN RGH65HA Linear Guide Rail 65mm Size High Precision Reliable Motion Systems 3

⑦Measurement drawing

⑧HIWIN series
