HIWIN RGH65CA Linear Guide Rail 50-4000mm Length Slide Guide Actuator Motion Module

Name: HIWIN RGH65CA Linear Guide Rail 50-4000mm Length Slide Guide Actuator Motion Module
Brand: Nanjing Tibi Ai Import and Export Trading Co., Ltd.
SKU: RGH65CA
Price: 50.00 USD
Availability: InStock

Brand Name:	HIWIN
Model Number:	RGH65CA
MOQ:	10
Price:	1-100 USD
Delivery Time:	1-7 work days
Payment Terms:	T/T,L/C,D/A,D/P,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA TAIWAN

Certification:

DE1924083895474

Series:

Model Size(mm):

65mm

No. Of Blocks Per Rail:

Rail Mounting Type:

R- Mounting From Top

Rail Length(mm):

Max 4000mm

Preload Class:

Z0- Light Preload , ZA- Medium Preload, ZB-Heavy Preload

Material:

SNCM220 Carbon Steel

Dust Protection:

SS-standard

Y -Symmetrical (E1＝E2) First Hole Dimension:

Y= Symmetrical （E1=E2)

Installation:

Easy

Application:

Automation Systems, Transportation Equipment, CNC Machining Centers, Heavy Duty Cutting Machines

Smoothness:

Smooth

Packaging Details:

Small or with carton box, Bulk order with Wooden box

Supply Ability:

100000 pcs / per month

Highlight:

RGH65CA Linear Guide Rail

RGH65CA linear slide rail

HIWIN Linear Guide Rail

Product Description

①HIWIN RGH65CA Linear Guideway Linear 50-4000mm Slide Guide Actuator Motion Module

The HIWIN RGH65CA Linear Guideway System exemplifies HIWIN's legacy as a pioneer in precision motion technology, delivering industrial-grade performance that has made the brand synonymous with reliability across global manufacturing sectors. This advanced linear motion solution showcases HIWIN's engineering prowess through its seamless integration of robust construction and refined movement characteristics, designed to meet the exacting standards of high-performance automation and machine tool applications. The RGH65CA series reflects HIWIN's commitment to innovation with its adaptable modular design, capable of supporting diverse industrial requirements while maintaining the consistent quality that machine builders have trusted for decades. HIWIN's reputation for excellence is evident in the system's optimized load distribution and vibration damping properties, developed through years of research in high-precision motion control. The guideway incorporates the company's proprietary sealing technology, a testament to HIWIN's deep understanding of real-world operational challenges in demanding environments. As part of HIWIN's premium product portfolio, the RGH65CA benefits from the same rigorous manufacturing standards and quality control processes that have established the brand as an industry benchmark. The system's versatility across various stroke lengths demonstrates HIWIN's ability to deliver scalable solutions without compromising performance integrity - a hallmark of the brand's customer-focused engineering philosophy. Trusted by leading manufacturers worldwide, this linear motion module embodies HIWIN's core values of precision, durability and innovation, offering engineers the confidence that comes with specifying components from a globally recognized leader in motion control technology. Whether deployed in automated production lines or precision machining centers, the RGH65CA continues HIWIN's tradition of delivering solutions that push the boundaries of what's possible in industrial motion applications.​

②Drawing of RGH65CA

③Model Number of RG Series

④Construction of RG Series

1.Rolling circulation system: Block, rail, end cap, Circulation path, rollers

2.Lubrication system: Grease nipple and piping joint

3.Dust protection system: End seal, bottom seal,bolt cap, double seals and scraper.


⑤Features of RG series
The new RG series from HIWIN features a roller as the rolling element instead of steel balls. The roller series offers super high rigidity and very high load capacities. The RG series is designed with a 45-degree angle of contact. Elastic deformation of the linear contact surface, during load, is greatly reduced thereby offering greater rigidity and higher load capacities in all 4 load directions.The RG series linear guideway offers high performance for high-precisionmanufacturing and achieving longer service life.
1. Optimal design
FEM analysis was performed to determine the optimal structure of the block and the rail. The unique design of the circulation path allows the RG series linear guideway to offer smoother linear motion.
2.Super high rigidity
The RG series is a type of linear guideway that uses rollers as the rolling elements. Rollers have a greater contact area thanballs so that the roller guideway features higher load capacityand greater rigidity. The figure shows the rigidity of a roller and a ball with equal volume.
3. Super high load capacity
With the four rows of rollers arranged at a contact angle of 45-degrees, the RG series linear guideway has equal load ratings in the radial, reverse radial and lateral directions.The RG series has a higher load capacity in a smaller size than conventional, ball-type linear guideways.
4. Operating life increased
Compare with the ball element, the contact pressure of rolling element is distributed on the line region. Therefore,stress concentration was reduced siginificantly and the RG series offers longer running life. The nominal life of RG seriescan be calculated by using Eq.

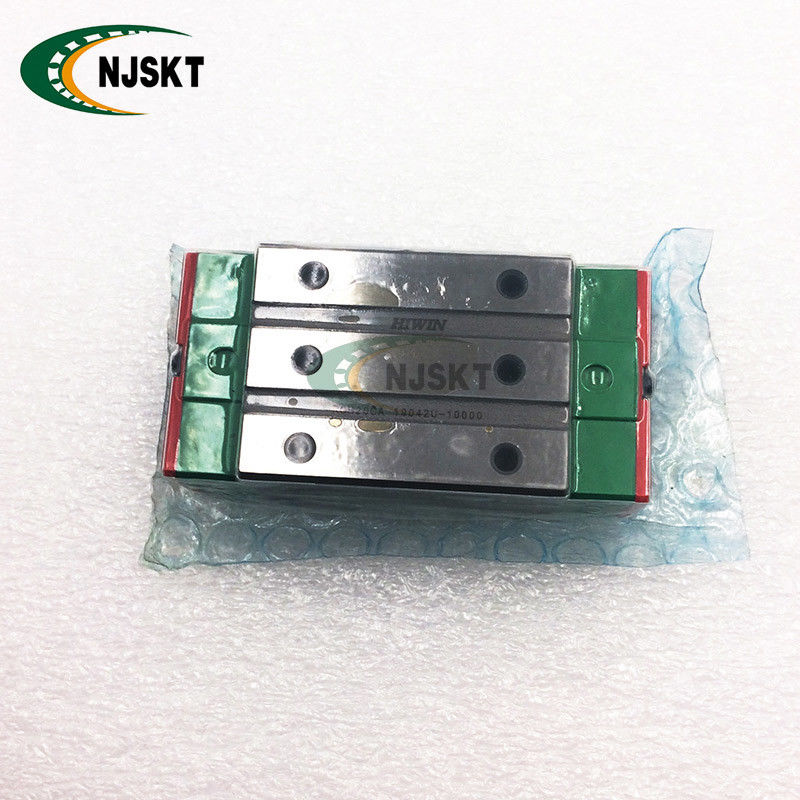

⑥Actual product photo

HIWIN RGH65CA Linear Guide Rail 50-4000mm Length Slide Guide Actuator Motion Module 3

⑦Measurement drawing

⑧HIWIN series
