HIWIN RGH55HA Linear Guide Bearing Block Linear Guide Rail High Performance

Name: HIWIN RGH55HA Linear Guide Bearing Block Linear Guide Rail High Performance
Brand: Nanjing Tibi Ai Import and Export Trading Co., Ltd.
SKU: RGH55HA
Price: 50.00 USD
Availability: InStock

Brand Name:	HIWIN
Model Number:	RGH55HA
MOQ:	10
Price:	1-100 USD
Delivery Time:	1-7 work days
Payment Terms:	T/T,L/C,D/A,D/P,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA TAIWAN

Certification:

DE1924083895474

Series:

Model Size(mm):

55mm

No. Of Blocks Per Rail:

Rail Mounting Type:

R- Mounting From Top

Rail Length(mm):

Max 4000mm

Preload Class:

Z0- Light Preload , ZA- Medium Preload, ZB-Heavy Preload

Material:

SNCM220 Carbon Steel

Dust Protection:

SS-standard

Y -Symmetrical (E1＝E2) First Hole Dimension:

Y= Symmetrical （E1=E2)

Installation:

Easy

Application:

Automation Systems, Transportation Equipment, CNC Machining Centers, Heavy Duty Cutting Machines

Smoothness:

Smooth

Packaging Details:

Small or with carton box, Bulk order with Wooden box

Supply Ability:

100000 pcs / per month

Highlight:

RGH55HA Linear Guide Bearing Block

RGH55HA Linear Guide Rail

High Performance Linear Guide Bearing Block

Product Description

①HIWIN RGH55HA Linear Guideway Blocks Roller Linear Guide Rail

    Exemplify the engineering excellence that has made HIWIN a global leader in precision motion technology, representing the pinnacle of roller-type linear guide systems, these robust components showcase HIWIN's decades of innovation in delivering reliable, high-performance solutions for the world's most demanding industrial applications. The RGH55HA series embodies HIWIN's commitment to quality through its meticulous manufacturing processes, where every component undergoes rigorous testing to ensure exceptional durability and precision. Designed for heavy-duty applications requiring ultimate rigidity and load capacity, these guideway blocks incorporate HIWIN's proprietary roller technology to achieve smoother motion characteristics and longer service life than conventional alternatives. The company's reputation for excellence is reflected in the RGH55HA's advanced sealing systems, which protect critical components while maintaining optimal lubrication - a hallmark of HIWIN's attention to real-world operational needs. As part of HIWIN's premium product lineup, these guideways benefit from the same exacting standards that have made the brand synonymous with reliability in industries ranging from aerospace to advanced manufacturing. The RGH55HA's design philosophy reflects HIWIN's holistic approach to motion control, where every element - from material selection to surface treatment - is optimized to work in perfect harmony. Trusted by leading machine builders worldwide, this series demonstrates HIWIN's ability to combine massive load-bearing capacity with precision movement, offering customers the peace of mind that comes with specifying components from an industry-leading brand. Whether for high-speed applications or heavy machining centers, the RGH55HA Linear Guideway Blocks deliver the performance and longevity that have made HIWIN the preferred choice for manufacturers who refuse to compromise on quality or reliability.​

②Drawing of RGH55HA

③Model Number of RG Series

④Construction of RG Series

1.Rolling circulation system: Block, rail, end cap, Circulation path, rollers

2.Lubrication system: Grease nipple and piping joint

3.Dust protection system: End seal, bottom seal,bolt cap, double seals and scraper.


⑤Features of RG series
The new RG series from HIWIN features a roller as the rolling element instead of steel balls. The roller series offers super high rigidity and very high load capacities. The RG series is designed with a 45-degree angle of contact. Elastic deformation of the linear contact surface, during load, is greatly reduced thereby offering greater rigidity and higher load capacities in all 4 load directions.The RG series linear guideway offers high performance for high-precisionmanufacturing and achieving longer service life.
1. Optimal design
FEM analysis was performed to determine the optimal structure of the block and the rail. The unique design of the circulation path allows the RG series linear guideway to offer smoother linear motion.
2.Super high rigidity
The RG series is a type of linear guideway that uses rollers as the rolling elements. Rollers have a greater contact area thanballs so that the roller guideway features higher load capacityand greater rigidity. The figure shows the rigidity of a roller and a ball with equal volume.
3. Super high load capacity
With the four rows of rollers arranged at a contact angle of 45-degrees, the RG series linear guideway has equal load ratings in the radial, reverse radial and lateral directions.The RG series has a higher load capacity in a smaller size than conventional, ball-type linear guideways.
4. Operating life increased
Compare with the ball element, the contact pressure of rolling element is distributed on the line region. Therefore,stress concentration was reduced siginificantly and the RG series offers longer running life. The nominal life of RG seriescan be calculated by using Eq.

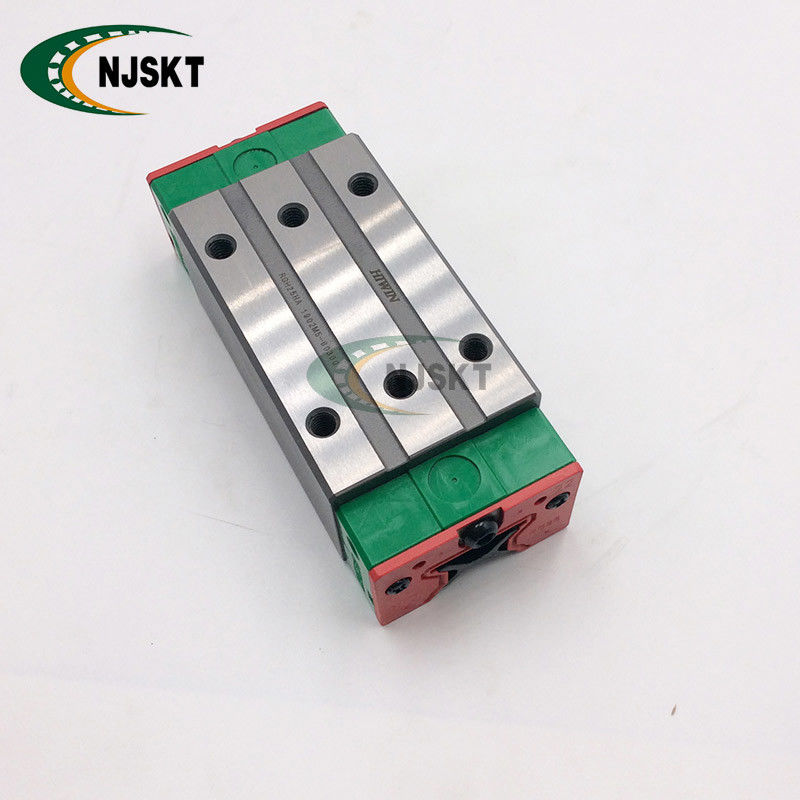

⑥Actual product photo

HIWIN RGH55HA Linear Guide Bearing Block Linear Guide Rail High Performance 3

⑦Measurement drawing

⑧HIWIN series

⑨top product recommendation
