HIWIN RGH30CA Linear Guide Block Compact For Transpotation Equipment

Name: HIWIN RGH30CA Linear Guide Block Compact For Transpotation Equipment
Brand: Nanjing Tibi Ai Import and Export Trading Co., Ltd.
SKU: RGH30CA
Price: 50.00 USD
Availability: InStock

Brand Name:	HIWIN
Model Number:	RGH30CA
MOQ:	10
Price:	1-100 USD
Delivery Time:	1-7 work days
Payment Terms:	T/T,L/C,D/A,D/P,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA TAIWAN

Certification:

DE1924083895474

Series:

Model Size(mm):

30mm

No. Of Blocks Per Rail:

Rail Mounting Type:

R- Mounting From Top

Rail Length(mm):

Max 4000mm

Preload Class:

Z0- Light Preload , ZA- Medium Preload, ZB-Heavy Preload

Material:

SNCM220 Carbon Steel

Dust Protection:

SS-standard

Y -Symmetrical (E1＝E2) First Hole Dimension:

Y= Symmetrical （E1=E2)

Installation:

Easy

Application:

Automation Systems, Transportation Equipment, CNC Machining Centers, Heavy Duty Cutting Machines

Smoothness:

Smooth

Packaging Details:

Small or with carton box, Bulk order with Wooden box

Supply Ability:

100000 pcs / per month

Highlight:

RGH30CA Linear Guide Block

RGH30CA Linear Guideway Block

Compact Linear Guide Block

Product Description

①HIWIN RGH30CA Linear Guideway Block For Transpotation Equipment

In the automated transportation equipment landscape, the HIWIN RGH30CA Linear Guideway Block stands out as an indispensable component. In modern automated warehouses, where robots and automated guided vehicles (AGVs) scurry around to retrieve and deliver goods, this guideway block plays a pivotal role. It enables smooth and consistent movement, allowing these automated devices to operate at high speeds without sacrificing accuracy. In high - speed sorting conveyor systems, the RGH30CA ensures that packages and items are transported precisely to their designated sorting points. Its ability to handle the dynamic forces generated during rapid acceleration and deceleration in automated transportation processes is remarkable. Whether it's in a large - scale logistics hub with a continuous flow of goods or a smaller - scale automated storage facility, the RGH30CA contributes to seamless automation. It reduces the risk of misalignments and breakdowns, which are costly in terms of both time and resources in the fast - paced world of automated transportation. By providing reliable linear motion, it paves the way for enhanced productivity and efficiency in transportation equipment automation.​

②Drawing of RGH30CA

③Model Number of RG Series

④Construction of RG Series

1.Rolling circulation system: Block, rail, end cap, Circulation path, rollers

2.Lubrication system: Grease nipple and piping joint

3.Dust protection system: End seal, bottom seal,bolt cap, double seals and scraper.


⑤Features of RG series
The new RG series from HIWIN features a roller as the rolling element instead of steel balls. The roller series offers super high rigidity and very high load capacities. The RG series is designed with a 45-degree angle of contact. Elastic deformation of the linear contact surface, during load, is greatly reduced thereby offering greater rigidity and higher load capacities in all 4 load directions.The RG series linear guideway offers high performance for high-precisionmanufacturing and achieving longer service life.
1. Optimal design
FEM analysis was performed to determine the optimal structure of the block and the rail. The unique design of the circulation path allows the RG series linear guideway to offer smoother linear motion.
2.Super high rigidity
The RG series is a type of linear guideway that uses rollers as the rolling elements. Rollers have a greater contact area thanballs so that the roller guideway features higher load capacityand greater rigidity. The figure shows the rigidity of a roller and a ball with equal volume.
3. Super high load capacity
With the four rows of rollers arranged at a contact angle of 45-degrees, the RG series linear guideway has equal load ratings in the radial, reverse radial and lateral directions.The RG series has a higher load capacity in a smaller size than conventional, ball-type linear guideways.
4. Operating life increased
Compare with the ball element, the contact pressure of rolling element is distributed on the line region. Therefore,stress concentration was reduced siginificantly and the RG series offers longer running life. The nominal life of RG seriescan be calculated by using Eq.

⑥Actual product photo

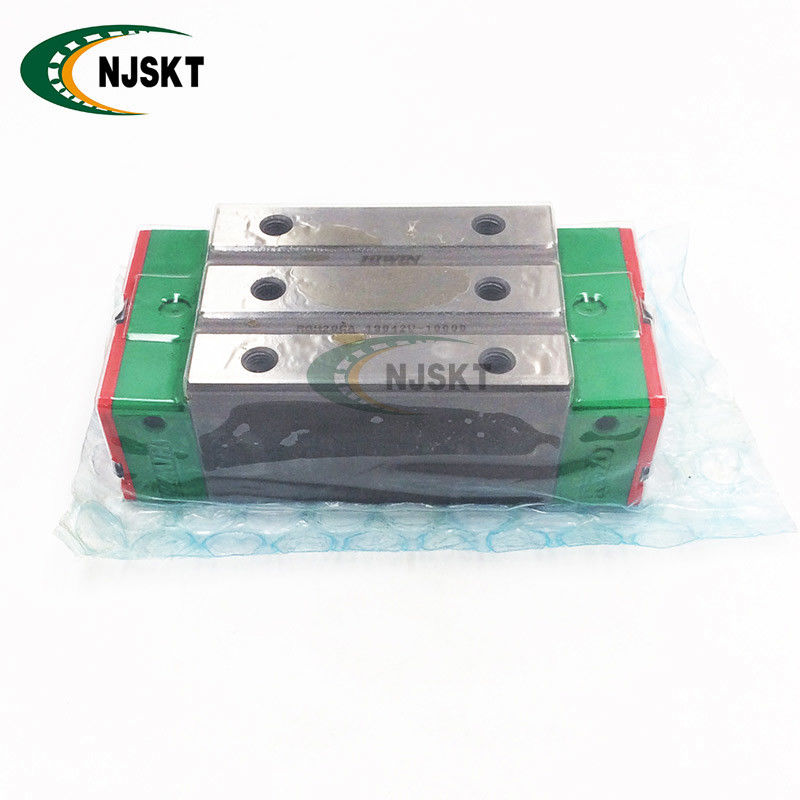

HIWIN RGH30CA Linear Guide Block Compact For Transpotation Equipment 3

⑦Measurement drawing

⑧HIWIN series

⑨top product recommendation
