HIWIN RGH25HA Linear Guide Systems Linear Motion Slide Rails For Automation Systems

Name: HIWIN RGH25HA Linear Guide Systems Linear Motion Slide Rails For Automation Systems
Brand: Nanjing Tibi Ai Import and Export Trading Co., Ltd.
SKU: RGH25HA
Price: 50.00 USD
Availability: InStock

Brand Name:	HIWIN
Model Number:	RGH25HA
MOQ:	10
Price:	1-100 USD
Delivery Time:	1-7 work days
Payment Terms:	T/T,L/C,D/A,D/P,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA TAIWAN

Certification:

DE1924083895474

Series:

Model Size(mm):

25mm

No. Of Blocks Per Rail:

Rail Mounting Type:

R- Mounting From Top

Rail Length(mm):

Max 4000mm

Preload Class:

Z0- Light Preload , ZA- Medium Preload, ZB-Heavy Preload

Material:

SNCM220 Carbon Steel

Dust Protection:

SS-standard

Y -Symmetrical (E1＝E2) First Hole Dimension:

Y= Symmetrical （E1=E2)

Installation:

Easy

Application:

Automation Systems, Transportation Equipment, CNC Machining Centers, Heavy Duty Cutting Machines

Smoothness:

Smooth

Packaging Details:

Small or with carton box, Bulk order with Wooden box

Supply Ability:

100000 pcs / per month

Highlight:

RGH25HA Linear Guide Systems

RGH25HA Linear Motion Slide Rails

HIWIN Linear Motion Slide Rails

Product Description

①HIWIN RGH25HA Linear Guideway Roller Side Guide For Automation Systems

In the fast - paced world of automation systems, the demand for components that ensure smooth, precise, and reliable movement is ever - increasing. The HIWIN RGH25HA Linear Guideway Roller Side Guide emerges as a crucial element in meeting these demands. This guideway is engineered to facilitate seamless linear motion within automation setups. It plays a pivotal role in a wide range of automated machinery, from industrial robots that require pinpoint accuracy during pick - and - place operations to precision - driven conveyor systems. Its design enables efficient transfer of loads, allowing automation equipment to function with minimal friction and maximum stability. This not only enhances the overall performance of the automation system but also contributes to its durability and long - term reliability. Whether in a high - speed production line where rapid yet accurate movement is essential or in a delicate assembly process that demands micron - level precision, the HIWIN RGH25HA Linear Guideway Roller Side Guide proves to be an invaluable asset, powering the advancement of modern automation technology.

②Drawing of RGH25HA

③Model Number of RG Series

④Construction of RG Series

1.Rolling circulation system: Block, rail, end cap, Circulation path, rollers

2.Lubrication system: Grease nipple and piping joint

3.Dust protection system: End seal, bottom seal,bolt cap, double seals and scraper.


⑤Features of RG series
The new RG series from HIWIN features a roller as the rolling element instead of steel balls. The roller series offers super high rigidity and very high load capacities. The RG series is designed with a 45-degree angle of contact. Elastic deformation of the linear contact surface, during load, is greatly reduced thereby offering greater rigidity and higher load capacities in all 4 load directions.The RG series linear guideway offers high performance for high-precisionmanufacturing and achieving longer service life.
1. Optimal design
FEM analysis was performed to determine the optimal structure of the block and the rail. The unique design of the circulation path allows the RG series linear guideway to offer smoother linear motion.
2.Super high rigidity
The RG series is a type of linear guideway that uses rollers as the rolling elements. Rollers have a greater contact area thanballs so that the roller guideway features higher load capacityand greater rigidity. The figure shows the rigidity of a roller and a ball with equal volume.
3. Super high load capacity
With the four rows of rollers arranged at a contact angle of 45-degrees, the RG series linear guideway has equal load ratings in the radial, reverse radial and lateral directions.The RG series has a higher load capacity in a smaller size than conventional, ball-type linear guideways.
4. Operating life increased
Compare with the ball element, the contact pressure of rolling element is distributed on the line region. Therefore,stress concentration was reduced siginificantly and the RG series offers longer running life. The nominal life of RG seriescan be calculated by using Eq.

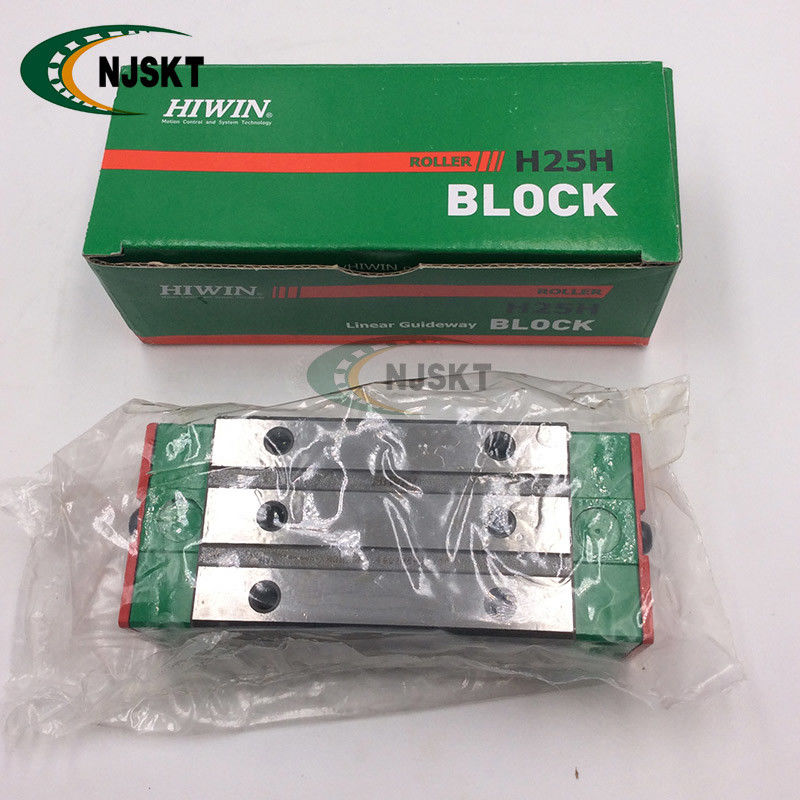

⑥Actual product photo

HIWIN RGH25HA Linear Guide Systems Linear Motion Slide Rails For Automation Systems 3

⑦Measurement drawing

⑧HIWIN series

⑨top product recommendation
