EGW35CA Hiwin Linear Bearing Carriage Easy Installation For Industrial

Name: EGW35CA Hiwin Linear Bearing Carriage Easy Installation For Industrial
Brand: Nanjing Tibi Ai Import and Export Trading Co., Ltd.
SKU: EGW35CA
Price: 50.00 USD
Availability: InStock

Brand Name:	HIWIN
Model Number:	EGW35CA
MOQ:	10
Price:	1-100 USD
Delivery Time:	1-7 work days
Payment Terms:	T/T,L/C,D/A,D/P,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA TAIWAN

Certification:

DE1924083895474

Series:

Model Size(mm):

35mm

No. Of Blocks Per Rail:

Rail Mounting Type:

R- Mounting From Top

Rail Length(mm):

Max 4000mm

Preload Class:

Z0-Very Light Preload , ZA-Light Preload , ZB-Medium Preload

Material:

SNCM220 Carbon Steel

Dust Protection:

SS-standard

Y -Symmetrical (E1＝E2) First Hole Dimension:

Y= Symmetrical （E1=E2)

Installation:

Easy

Application:

Automation Machines

Smoothness:

Smooth

Packaging Details:

Small or with carton box, Bulk order with Wooden box

Supply Ability:

100000 pcs / per month

Highlight:

EGW35CA Hiwin Linear Bearing Carriage

EGW35CA hiwin rail guide

Hiwin Linear Bearing Carriage For Industrial

Product Description

①HIWIN EGW35CA Linear Guideway Linear Motion Guideways For Industrial

The HIWIN EGW35CA Linear Guideway is a top - of - the - line product designed for industrial linear motion applications. It offers exceptional performance and reliability in various industrial scenarios.In industrial automation systems, the EGW35CA linear guideway plays a crucial role in enabling smooth and precise movement of robotic arms and automated handling equipment. It allows for high - speed and accurate positioning, which is essential for tasks such as pick - and - place operations, assembly processes, and material handling. This ensures efficient production and reduces errors, thereby increasing overall productivity.

In the field of machine tools, the EGW35CA provides the necessary stability and accuracy for the movement of cutting tools and worktables. It enables precise machining of complex parts with high surface quality and tight dimensional tolerances. This is particularly important in industries such as aerospace, automotive, and electronics, where precision is of utmost importance.

Furthermore, in printing and packaging machinery, the HIWIN EGW35CA linear guideway ensures smooth and consistent movement of printing heads, packaging materials, and conveyor belts. This helps to achieve high - quality printing and efficient packaging processes, meeting the demands of high - volume production. Overall, the HIWIN EGW35CA Linear Guideway is an indispensable component for industrial linear motion, contributing to the smooth operation and high - quality output of various industrial equipment.

②Drawing of EGW35CA

③Model Number of EG Series

④Construction of EG Series

1.Rolling circulation system: Block, rail, end cap and retainer

2.Lubrication system: Grease nipple and piping joint

3.Dust protection system: End seal, bottom seal, cap and scraper.

⑤Features of EG series
The design of the EG series offers a low profile, high load capacity, and high rigidity. It also features an equal load rating in all four directions and self-aligning capability to absorb installation-error, allowing for higher accuracies. Additionally, the lower assembly height and the shorter length make the EG series more suitable for high-speed, automation machines and applications where space is limited.

The retainer is designed to hold the balls in the block even when it is removed from the rail.

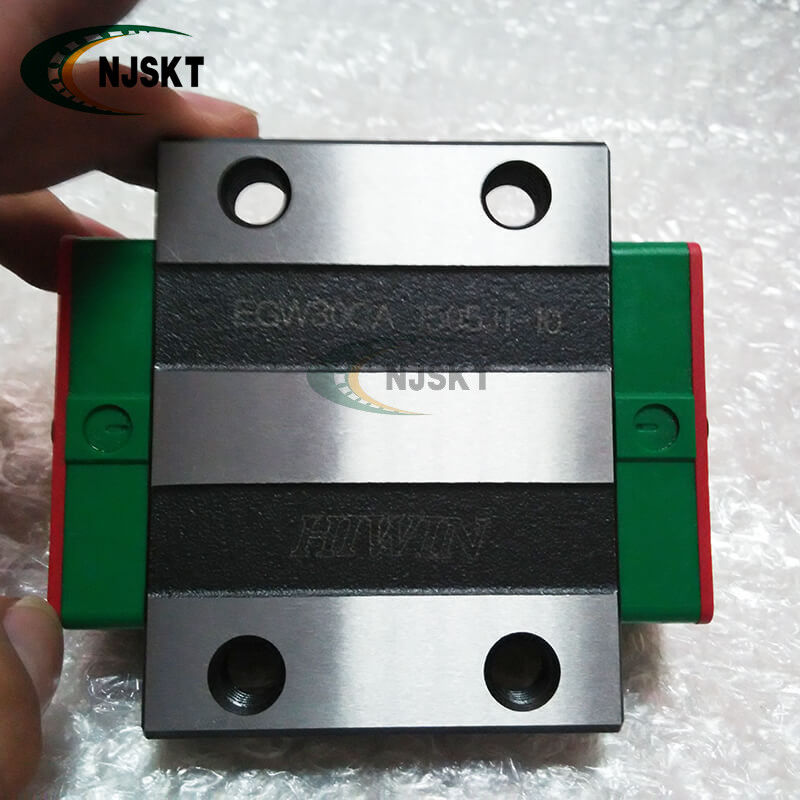

⑥Actual product photo

EGW35CA Hiwin Linear Bearing Carriage Easy Installation For Industrial 3

⑦Measurement drawing

EGW35CA Hiwin Linear Bearing Carriage Easy Installation For Industrial 4

EGW35CA Hiwin Linear Bearing Carriage Easy Installation For Industrial 5
