EGW25CA Hiwin 25mm Rail Symmetrical With SNCM220 Carbon Steel Material

Name: EGW25CA Hiwin 25mm Rail Symmetrical With SNCM220 Carbon Steel Material
Brand: Nanjing Tibi Ai Import and Export Trading Co., Ltd.
SKU: EGW25CA
Price: 50.00 USD
Availability: InStock

Brand Name:	HIWIN
Model Number:	EGW25CA
MOQ:	10
Price:	1-100 USD
Delivery Time:	1-7 work days
Payment Terms:	T/T,L/C,D/A,D/P,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA TAIWAN

Certification:

DE1924083895474

Series:

Model Size(mm):

25mm

No. Of Blocks Per Rail:

Rail Mounting Type:

R- Mounting From Top

Rail Length(mm):

Max 4000mm

Preload Class:

Z0-Very Light Preload , ZA-Light Preload , ZB-Medium Preload

Material:

SNCM220 Carbon Steel

Dust Protection:

SS-standard

Y -Symmetrical (E1＝E2) First Hole Dimension:

Y= Symmetrical （E1=E2)

Installation:

Easy

Application:

Automation Machines

Smoothness:

Smooth

Packaging Details:

Small or with carton box, Bulk order with Wooden box

Supply Ability:

100000 pcs / per month

Highlight:

EGW25CA Hiwin 25mm Rail

EGW25CA hiwin roller guideways

Symmetrical Hiwin 25mm Rail

Product Description

①HIWIN EGW25CA Linear Guideway Block Linear Bearing Slide Unit

The HIWIN EGW25CA Linear Guideway Block Linear Bearing Slide Unit is a crucial component in the field of automation. It is designed to provide smooth and precise linear motion for various automated machines and equipment.

In automated production lines, such as those in the electronics industry, it enables the precise movement of robotic arms for tasks like picking and placing small electronic components. This ensures high - quality assembly and reduces errors. In the automotive industry, it is used in automated manufacturing processes for tasks like welding and painting, where accurate linear motion is required to ensure the quality of the final product. In addition, in the field of CNC machining, the EGW25CA allows the cutting tool to move along the guideway with high accuracy, enabling the processing of complex - shaped workpieces. It also finds applications in automated packaging lines, where it helps in the smooth transportation of packages. Overall, the HIWIN EGW25CA Linear Guideway Block Linear Bearing Slide Unit plays a vital role in enhancing the efficiency and accuracy of automation processes across various industries.

②Drawing of EGW25CA

③Model Number of EG Series

④Construction of EG Series

1.Rolling circulation system: Block, rail, end cap and retainer

2.Lubrication system: Grease nipple and piping joint

3.Dust protection system: End seal, bottom seal, cap and scraper.

⑤Features of EG series
The design of the EG series offers a low profile, high load capacity, and high rigidity. It also features an equal load rating in all four directions and self-aligning capability to absorb installation-error, allowing for higher accuracies. Additionally, the lower assembly height and the shorter length make the EG series more suitable for high-speed, automation machines and applications where space is limited.

The retainer is designed to hold the balls in the block even when it is removed from the rail.

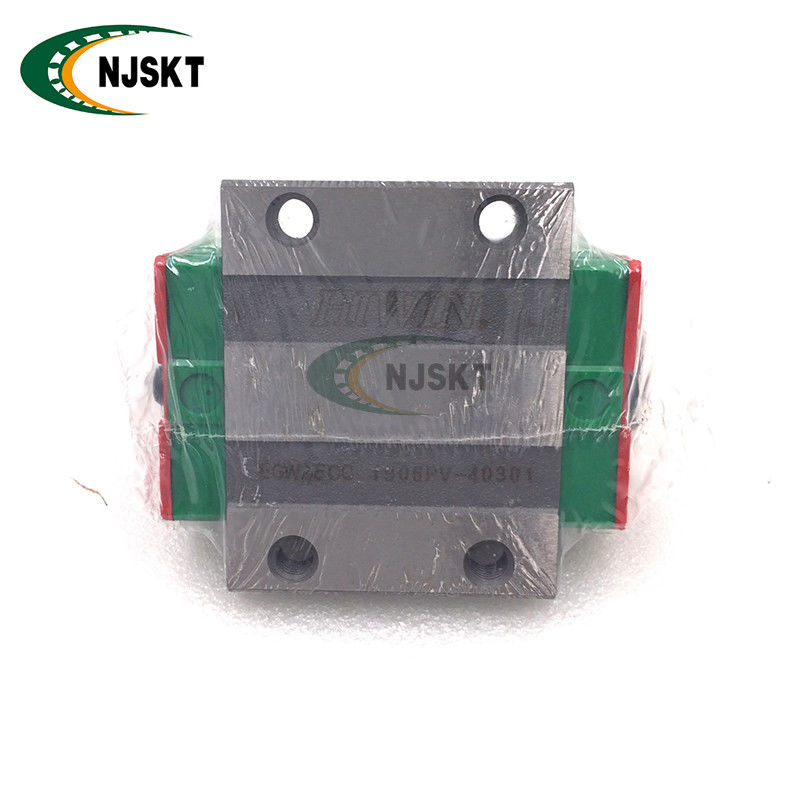

⑥Actual product photo

EGW25CA Hiwin 25mm Rail Symmetrical With SNCM220 Carbon Steel Material 3

⑦Measurement drawing

EGW25CA Hiwin 25mm Rail Symmetrical With SNCM220 Carbon Steel Material 4

EGW25CA Hiwin 25mm Rail Symmetrical With SNCM220 Carbon Steel Material 5
