EGW20CA HIWIN Linear Guide Reliable R Mounting From Top For Machine

Name: EGW20CA HIWIN Linear Guide Reliable R Mounting From Top For Machine
Brand: Nanjing Tibi Ai Import and Export Trading Co., Ltd.
SKU: EGW20CA
Price: 50.00 USD
Availability: InStock

Brand Name:	HIWIN
Model Number:	EGW20CA
MOQ:	10
Price:	1-100 USD
Delivery Time:	1-7 work days
Payment Terms:	T/T,L/C,D/A,D/P,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA TAIWAN

Certification:

DE1924083895474

Series:

Model Size(mm):

20 Mm

No. Of Blocks Per Rail:

Rail Mounting Type:

R- Mounting From Top

Rail Length(mm):

Max 4000mm

Preload Class:

Z0-Very Light Preload , ZA-Light Preload , ZB-Medium Preload

Material:

SNCM220 Carbon Steel

Dust Protection:

SS-standard

Y -Symmetrical (E1＝E2) First Hole Dimension:

Y= Symmetrical （E1=E2)

Installation:

Easy

Application:

Automation Machines

Smoothness:

Smooth

Packaging Details:

Small or with carton box, Bulk order with Wooden box

Supply Ability:

100000 pcs / per month

Highlight:

EGW20CA HIWIN Linear Guide

EGW20CA hiwin roller guideways

Reliable HIWIN Linear Guide

Product Description

①HIWIN EGW20CA Linear Guideway Hiwin Bearing Metal Guide Rail

The HIWIN EGW20CA Linear Guideway, together with the Hiwin Bearing Metal Guide Rail, is an essential component in various mechanical applications. In the field of industrial automation, it serves as a reliable track for automated transport systems. It enables the smooth movement of carriers that transport raw materials, semi - finished products, or finished goods within a factory. This ensures efficient material flow and reduces production bottlenecks.

In the woodworking industry, the EGW20CA guideway is used in precision cutting and shaping machines. It allows the cutting tools to move along the rail with high accuracy, enabling the creation of intricate woodwork designs. In addition, in the printing industry, this guideway system is crucial for the precise movement of printing heads. It ensures that the ink is applied accurately on the printing medium, resulting in high - quality prints. Overall, the HIWIN EGW20CA Linear Guideway and Hiwin Bearing Metal Guide Rail offer excellent stability and precision, contributing to the improved performance and productivity of various machines.

②Drawing of EGW20CA

③Model Number of EG Series

④Construction of EG Series

1.Rolling circulation system: Block, rail, end cap and retainer

2.Lubrication system: Grease nipple and piping joint

3.Dust protection system: End seal, bottom seal, cap and scraper.

⑤Features of EG series
The design of the EG series offers a low profile, high load capacity, and high rigidity. It also features an equal load rating in all four directions and self-aligning capability to absorb installation-error, allowing for higher accuracies. Additionally, the lower assembly height and the shorter length make the EG series more suitable for high-speed, automation machines and applications where space is limited.

The retainer is designed to hold the balls in the block even when it is removed from the rail.

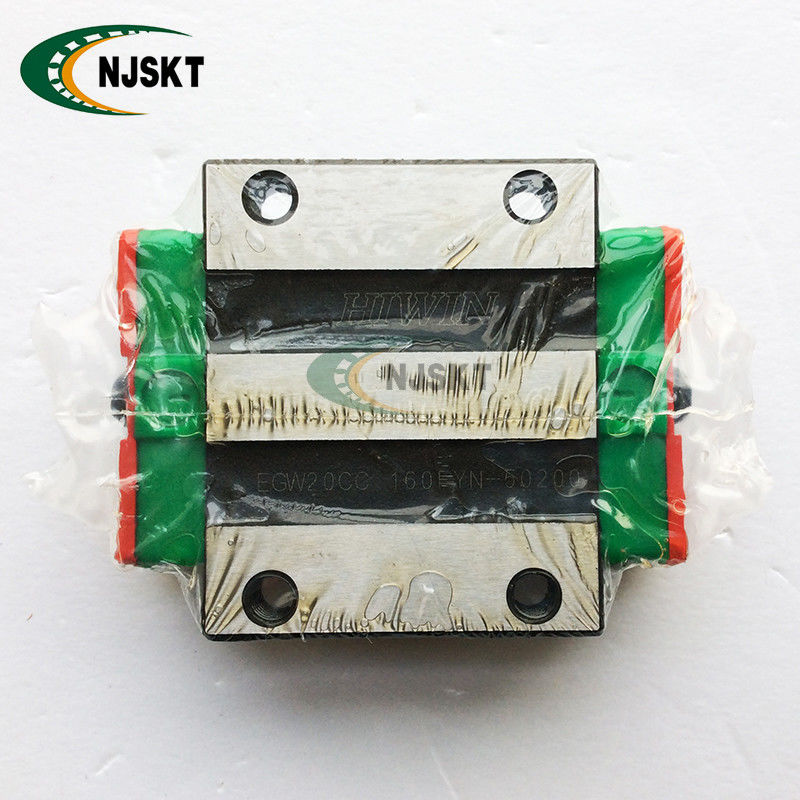

⑥Actual product photo

EGW20CA HIWIN Linear Guide Reliable R Mounting From Top For Machine 3

⑦Measurement drawing

EGW20CA HIWIN Linear Guide Reliable R Mounting From Top For Machine 4

EGW20CA HIWIN Linear Guide Reliable R Mounting From Top For Machine 5
