EGW15CA HIWIN Linear Guide High Accuracy For Machines 15mm Size

Name: EGW15CA HIWIN Linear Guide High Accuracy For Machines 15mm Size
Brand: Nanjing Tibi Ai Import and Export Trading Co., Ltd.
SKU: EGW15CA
Price: 50.00 USD
Availability: InStock

Brand Name:	HIWIN
Model Number:	EGW15CA
MOQ:	10
Price:	1-100 USD
Delivery Time:	1-7 work days
Payment Terms:	T/T,L/C,D/A,D/P,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA TAIWAN

Certification:

DE1924083895474

Series:

Model Size(mm):

15 Mm

No. Of Blocks Per Rail:

Rail Mounting Type:

R- Mounting From Top

Rail Length(mm):

Max 4000mm

Preload Class:

Z0-Very Light Preload , ZA-Light Preload , ZB-Medium Preload

Material:

SNCM220 Carbon Steel

Dust Protection:

SS-standard

Y -Symmetrical (E1＝E2) First Hole Dimension:

Y= Symmetrical （E1=E2)

Installation:

Easy

Application:

Automation Machines

Smoothness:

Smooth

Packaging Details:

Small or with carton box, Bulk order with Wooden box

Supply Ability:

100000 pcs / per month

Highlight:

EGW15CA HIWIN Linear Guide

EGW15CA hiwin linear motion

HIWIN Linear Guide For Machines

Product Description

①HIWIN EGW15CA Linear Guideway Hiwin Linear Bearing For Machines

The HIWIN EGW15CA Linear Guideway paired with the Hiwin Linear Bearing is a remarkable solution for a wide array of machines. In the automated production line of small consumer electronics, it plays a pivotal role. The guideway allows for the smooth and precise movement of robotic grippers, ensuring that delicate components like microchips and tiny sensors are picked up and placed accurately during assembly. This not only boosts productivity but also safeguards against costly errors due to misplacement.

In precision machining workshops, when dealing with intricate parts for aerospace or high-end watchmaking, the EGW15CA provides the necessary stability and accuracy. The linear bearing minimizes friction, enabling the cutting tool to glide along the guideway with micron-level precision, carving out complex geometries flawlessly.

For textile machinery, it facilitates the seamless operation of shuttle mechanisms, ensuring that threads are woven evenly and without snags. It's also a go-to option in laboratory automation setups, where sample trays need to be moved precisely for analysis. Overall, the HIWIN EGW15CA Linear Guideway and its associated linear bearing offer reliability, accuracy, and enhanced performance for countless machine applications.

②Drawing of EGW15CA

③Model Number of EG Series

④Construction of EG Series

1.Rolling circulation system: Block, rail, end cap and retainer

2.Lubrication system: Grease nipple and piping joint

3.Dust protection system: End seal, bottom seal, cap and scraper.

⑤Features of EG series
The design of the EG series offers a low profile, high load capacity, and high rigidity. It also features an equal load rating in all four directions and self-aligning capability to absorb installation-error, allowing for higher accuracies. Additionally, the lower assembly height and the shorter length make the EG series more suitable for high-speed, automation machines and applications where space is limited.

The retainer is designed to hold the balls in the block even when it is removed from the rail.

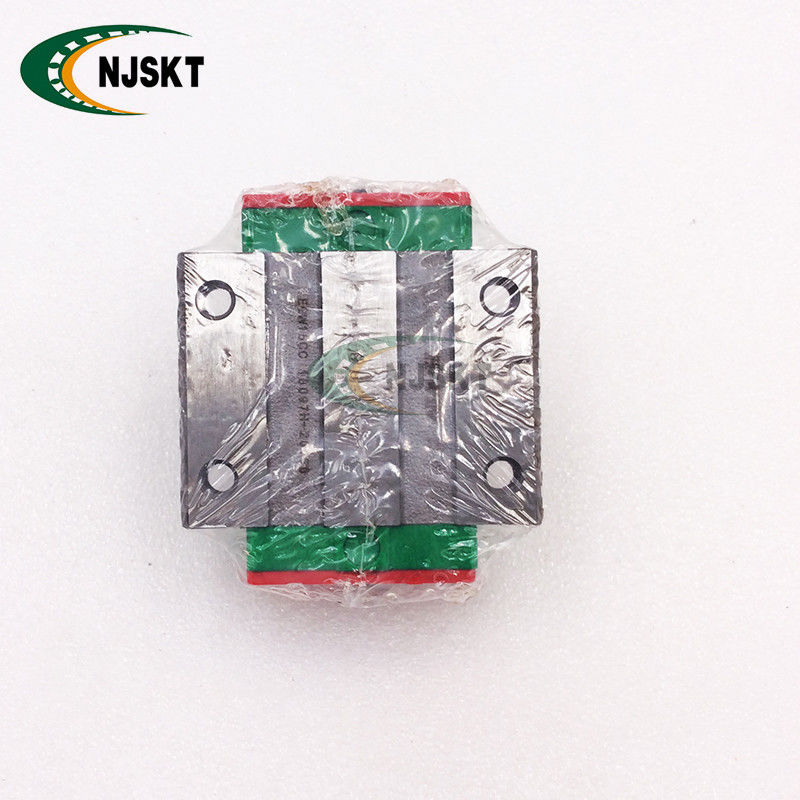

⑥Actual product photo

EGW15CA HIWIN Linear Guide High Accuracy For Machines 15mm Size 3

⑦Measurement drawing

EGW15CA HIWIN Linear Guide High Accuracy For Machines 15mm Size 4

EGW15CA HIWIN Linear Guide High Accuracy For Machines 15mm Size 5
