EGW35SA CNC Genuine Hiwin Rails Hiwin Miniature Linear Guide

Name: EGW35SA CNC Genuine Hiwin Rails Hiwin Miniature Linear Guide
Brand: Nanjing Tibi Ai Import and Export Trading Co., Ltd.
SKU: EGW35SA
Price: 50.00 USD
Availability: InStock

Brand Name:	HIWIN
Model Number:	EGW35SA
MOQ:	10
Price:	1-100 USD
Delivery Time:	1-7 work days
Payment Terms:	T/T,L/C,D/A,D/P,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA TAIWAN

Certification:

DE1924083895474

Series:

Model Size(mm):

35mm

No. Of Blocks Per Rail:

Rail Mounting Type:

R- Mounting From Top

Rail Length(mm):

Max 4000mm

Preload Class:

Z0-Very Light Preload , ZA-Light Preload , ZB-Medium Preload

Material:

SNCM220 Carbon Steel

Dust Protection:

SS-standard

Y -Symmetrical (E1＝E2) First Hole Dimension:

Y= Symmetrical （E1=E2)

Installation:

Easy

Application:

Automation Machines

Smoothness:

Smooth

Packaging Details:

Small or with carton box, Bulk order with Wooden box

Supply Ability:

100000 pcs / per month

Highlight:

EGW35SA Genuine Hiwin Rails

EGW35SA Hiwin Miniature Linear Guide

CNC Hiwin Miniature Linear Guide

Product Description

①HIWIN EGW35SA Linear Guideway CNC Block Hiwin Linear Rail System

The HIWIN EGW35SA Linear Guideway CNC Block and its accompanying Linear Rail System are revolutionizing automation across diverse industries. In the highly automated automotive manufacturing domain, it's the driving force behind the seamless movement of robotic arms that assemble engines and attach components with pinpoint precision. As these arms glide along the rail system, every weld, bolt tightening, and part placement is executed with unerring accuracy, significantly enhancing the overall quality and efficiency of vehicle production.

Turning to the electronics sector, during the intricate process of circuit board fabrication, the EGW35SA ensures that microscopic components are transported and positioned with absolute stability. This minimizes errors in soldering and assembly, allowing for the mass production of high-quality electronics. In automated warehousing and logistics, conveyor belts integrated with this linear rail system smoothly ferry packages, optimizing the flow of goods and enabling rapid sorting and dispatch.

Even in the realm of advanced medical equipment manufacturing, where precision is a matter of life and death, the HIWIN system provides the reliable linear motion needed to fabricate delicate surgical instruments and diagnostic devices. It empowers automation to reach new heights, making processes faster, more reliable, and less prone to human error.

②Drawing of EGW35SA

③Model Number of EG Series

④Construction of EG Series

1.Rolling circulation system: Block, rail, end cap and retainer

2.Lubrication system: Grease nipple and piping joint

3.Dust protection system: End seal, bottom seal, cap and scraper.

⑤Features of EG series
The design of the EG series offers a low profile, high load capacity, and high rigidity. It also features an equal load rating in all four directions and self-aligning capability to absorb installation-error, allowing for higher accuracies. Additionally, the lower assembly height and the shorter length make the EG series more suitable for high-speed, automation machines and applications where space is limited.

The retainer is designed to hold the balls in the block even when it is removed from the rail.

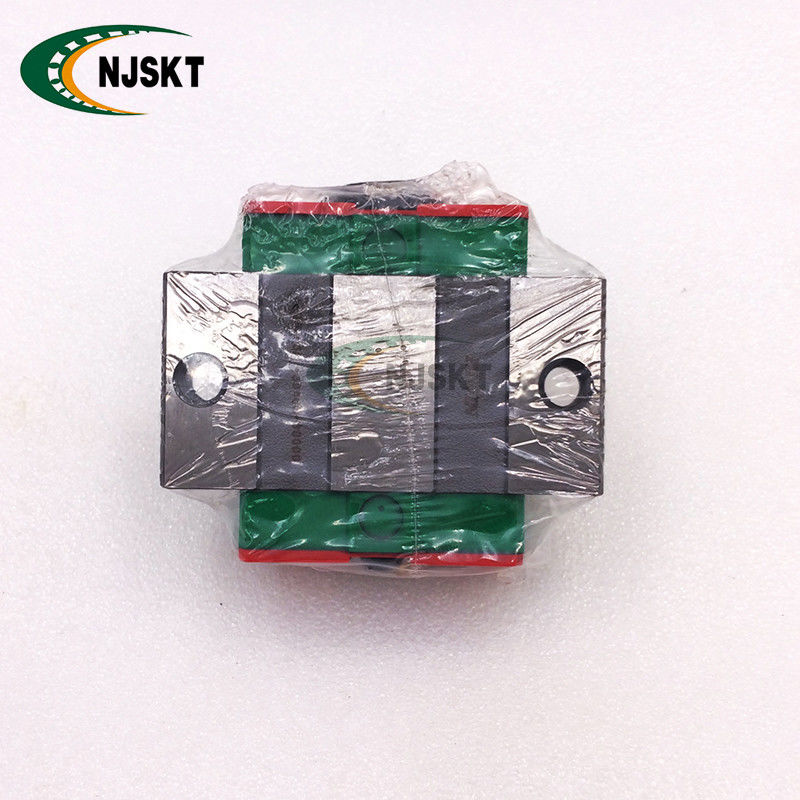

⑥Actual product photo

EGW35SA CNC Genuine Hiwin Rails Hiwin Miniature Linear Guide 3

⑦Measurement drawing

EGW35SA CNC Genuine Hiwin Rails Hiwin Miniature Linear Guide 4

EGW35SA CNC Genuine Hiwin Rails Hiwin Miniature Linear Guide 5
