| Brand Name: | HIMIN |
| Model Number: | MGW7H |
| MOQ: | 10 |
| Price: | 1-100 USD |
| Delivery Time: | 1-7 work days |
| Payment Terms: | T/T,L/C,D/A,D/P,Western Union |

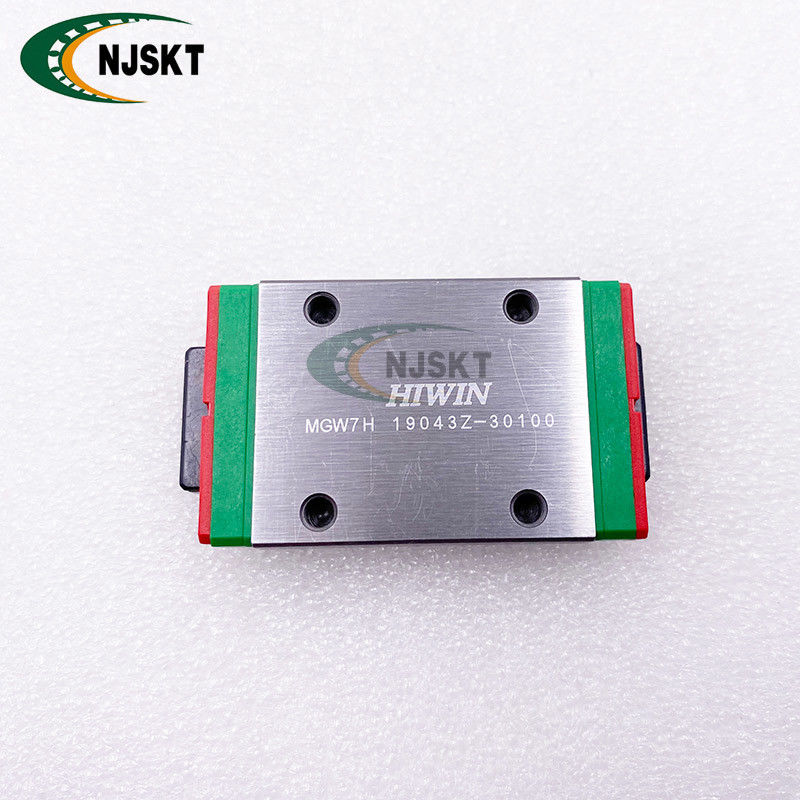

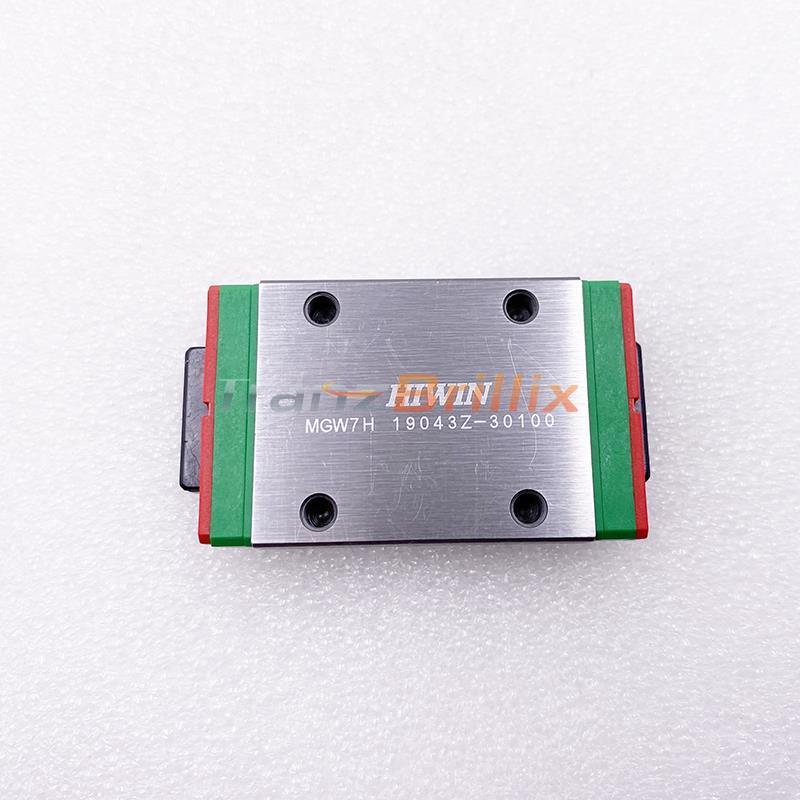

Engineered with HIWIN's renowned precision craftsmanship in Taiwan, the MGW7H Miniature Linear Guideway delivers exceptional performance in ultra-compact automation systems. This premium linear motion solution incorporates HIWIN's proprietary bearing technology, ensuring silky-smooth movement for applications where space and precision are paramount.
The MGW7H exemplifies HIWIN's commitment to quality, featuring advanced sealing systems that protect critical components while maintaining optimal performance in demanding environments. Its robust construction and thermal-stable design make it ideal for semiconductor equipment, medical devices, and high-tech automation systems requiring reliable, maintenance-free operation.
With HIWIN's strict quality control and global technical support, the MGW7H offers peace of mind for engineers designing next-generation compact machinery. Trusted by leading manufacturers worldwide, this guideway carries HIWIN's legacy of innovation - delivering the perfect balance of miniaturization and performance that professionals expect from the industry's most respected motion control brand.
Note:1.The bottom seal is available for MGN & MGW 9, 12,14.15.1.Rolling circulation system: Block, rail, ball, end cap and retainer [except size 2).
2.Lubrication system: Grease nipple is available for MGW14, 15, lubricated by grease gun.
3.MGW3, 7, 9, 12 are lubricated by the hole at the side of the end cap.
4.Dust protection system: End seal (except size2), bottom seal (optional size 9,12,14,15], cap (size12,14,15).
| Model No. | Block length(mm) | Preload classes | Bolt size | Weight(kg) |
| MGW7C | 31.2 | Z0/ZF/Z1 | 4-M3x3 | 0.02 |
| MGW7H | 41 | Z0/ZF/Z1 | 4-M3x3 | 0.029 |
| MGW9C | 39.3 | Z0/ZF/Z1 | 4-M3x3 | 0.04 |
| MGW9H | 50.7 | Z0/ZF/Z1 | 4-M3x3 | 0.057 |
| MGW12C | 46.1 | Z0/ZF/Z1 | 4-M3x3.6 | 0.071 |
| MGW12H | 60.4 | Z0/ZF/Z1 | 4-M3x3.6 | 0.103 |
| MGW15C | 54.8 | Z0/ZF/Z1 | 4-M4x4.2 | 0.143 |
| MGW15H | 73.8 | Z0/ZF/Z1 | 4-M4x4.2 | 0.215 |
