| Brand Name: | HIMIN |
| Model Number: | MGW7C |
| MOQ: | 10 |
| Price: | 1-100 USD |
| Delivery Time: | 1-7 work days |
| Payment Terms: | T/T,L/C,D/A,D/P,Western Union |

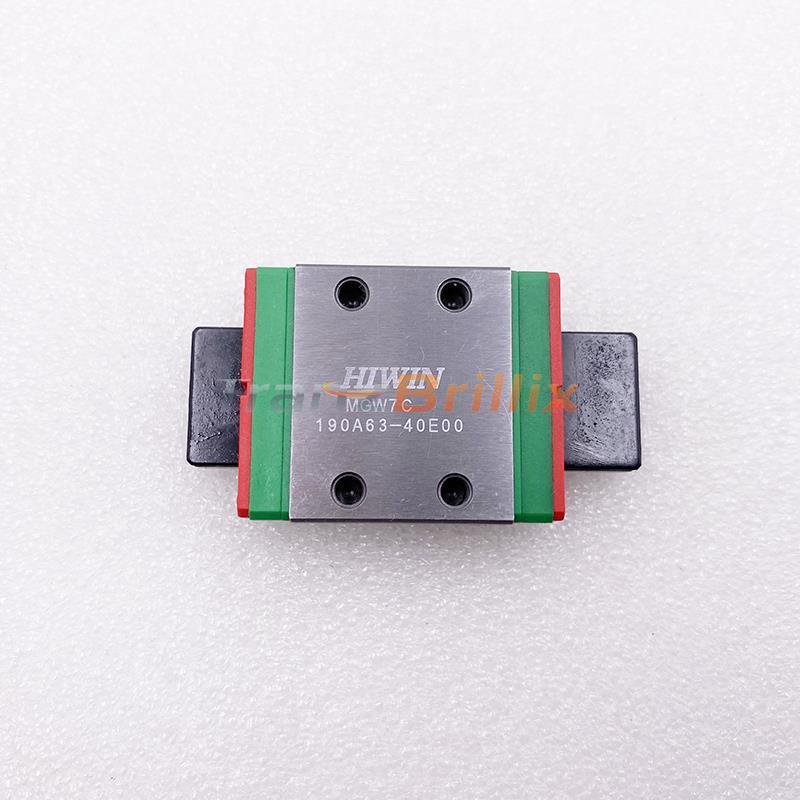

The MGW7C features HIWIN's proprietary recirculating ball bearing technology, ensuring buttery-smooth linear motion perfect for high-precision machining operations. Its rugged construction maintains HIWIN's legendary durability standards while the precision-ground rails provide exceptional straightness and vibration damping characteristics.Ideal for miniature CNC equipment, precision measuring instruments, and automated production systems, this guideway comes with HIWIN's advanced sealing technology to protect against contaminants in demanding workshop conditions.
With immediate availability from our global stock and HIWIN's world-class quality assurance, the MGW7C delivers the perfect combination of miniaturization and performance that professionals expect from the industry's most trusted linear motion brand.
Note:1.The bottom seal is available for MGN & MGW 9, 12,14.15.1.Rolling circulation system: Block, rail, ball, end cap and retainer [except size 2).
2.Lubrication system: Grease nipple is available for MGW14, 15, lubricated by grease gun.
3.MGW3, 7, 9, 12 are lubricated by the hole at the side of the end cap.
4.Dust protection system: End seal (except size2), bottom seal (optional size 9,12,14,15], cap (size12,14,15).
| Model No. | Block length(mm) | Preload classes | Bolt size | Weight(kg) |
| MGW7C | 31.2 | Z0/ZF/Z1 | 4-M3x3 | 0.02 |
| MGW7H | 41 | Z0/ZF/Z1 | 4-M3x3 | 0.029 |
| MGW9C | 39.3 | Z0/ZF/Z1 | 4-M3x3 | 0.04 |
| MGW9H | 50.7 | Z0/ZF/Z1 | 4-M3x3 | 0.057 |
| MGW12C | 46.1 | Z0/ZF/Z1 | 4-M3x3.6 | 0.071 |
| MGW12H | 60.4 | Z0/ZF/Z1 | 4-M3x3.6 | 0.103 |
| MGW15C | 54.8 | Z0/ZF/Z1 | 4-M4x4.2 | 0.143 |
| MGW15H | 73.8 | Z0/ZF/Z1 | 4-M4x4.2 | 0.215 |
