| Brand Name: | HIWIN |
| Model Number: | MGN12H |
| MOQ: | 10 |
| Price: | 1-100 USD |
| Delivery Time: | 1-7 work days |
| Payment Terms: | T/T,L/C,D/A,D/P,Western Union |
Engineered to HIWIN's exacting standards, the MGN12H Miniature Linear Guideway with Z0 preload delivers uncompromising precision for critical motion applications. This premium micro linear guide exemplifies HIWIN's commitment to excellence, featuring advanced recirculation technology that ensures buttery-smooth operation in space-constrained systems.
Designed for applications demanding absolute accuracy, the MGN12H incorporates HIWIN's proprietary manufacturing techniques to achieve exceptional rigidity and near-zero backlash performance. The guideway's optimized preload configuration maintains perfect alignment throughout its service life, making it ideal for semiconductor equipment, precision metrology, and high-end automation systems.
HIWIN's signature sealing technology protects the precision-ground components from contamination while requiring minimal maintenance. The MGN12H's robust construction and thermal-stable design reflect HiWIN's decades of experience in motion control innovation. Trusted by leading manufacturers worldwide, this guideway carries HIWIN's reputation for reliability into the most demanding micro-positioning applications. From medical robotics to optical alignment systems, the MGN12H delivers the perfect balance of precision, durability, and performance that professionals expect from the HIWIN brand.
Note:
| model No. | block length(mm) | preload classes | bolt size | weight(kg) |
|---|---|---|---|---|
| MGN7C | 22.5 | Z0/ZF/Z1 | M2*0.4P*6L | 0.010 |
| MGN7H | 30.8 | Z0/ZF/Z1 | M2*0.4P*6L | 0.015 |
| MGN9C | 28.9 | Z0/ZF/Z1 | M3*0.5P*8L | 0.016 |
| MGN9H | 39.9 | Z0/ZF/Z1 | M3*0.5P*8L | 0.026 |
| MGN12C | 34.7 | Z0/ZF/Z1 | M3*0.5P*8L | 0.034 |
| MGN12H | 45.4 | Z0/ZF/Z1 | M3*0.5P*8L | 0.054 |
| MGN15C | 42.1 | Z0/ZF/Z1 | M3*0.5P*10L | 0.059 |
| MGN15H | 58.8 | Z0/ZF/Z1 | M3*0.5P*10L | 0.092 |

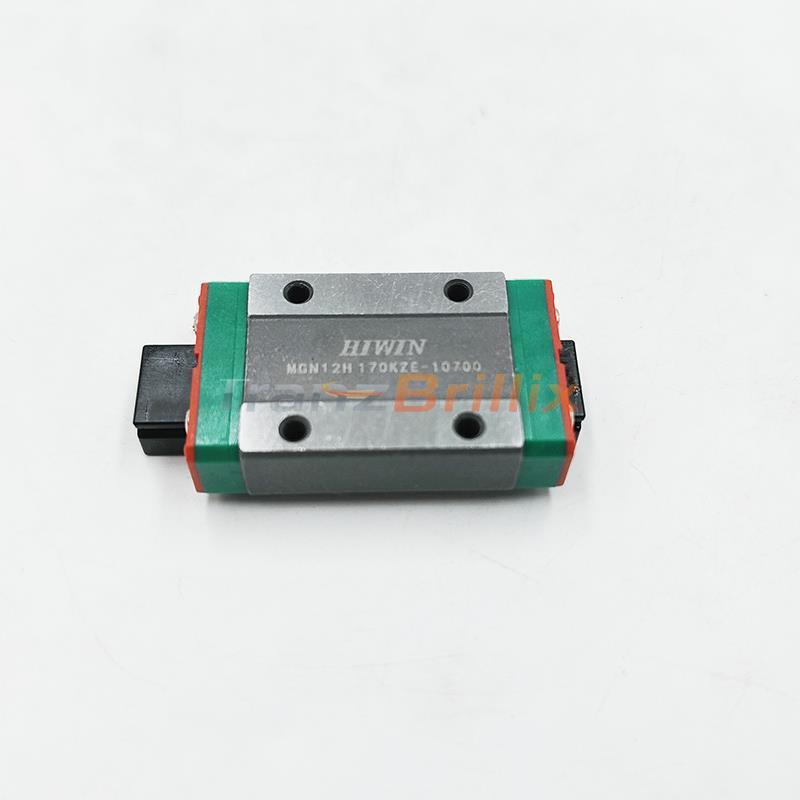

⑥Actual product photo
