| Brand Name: | HIWIN |
| Model Number: | MGN12C |
| MOQ: | 10 |
| Price: | 1-100 USD |
| Delivery Time: | 1-7 work days |
| Payment Terms: | T/T,L/C,D/A,D/P,Western Union |

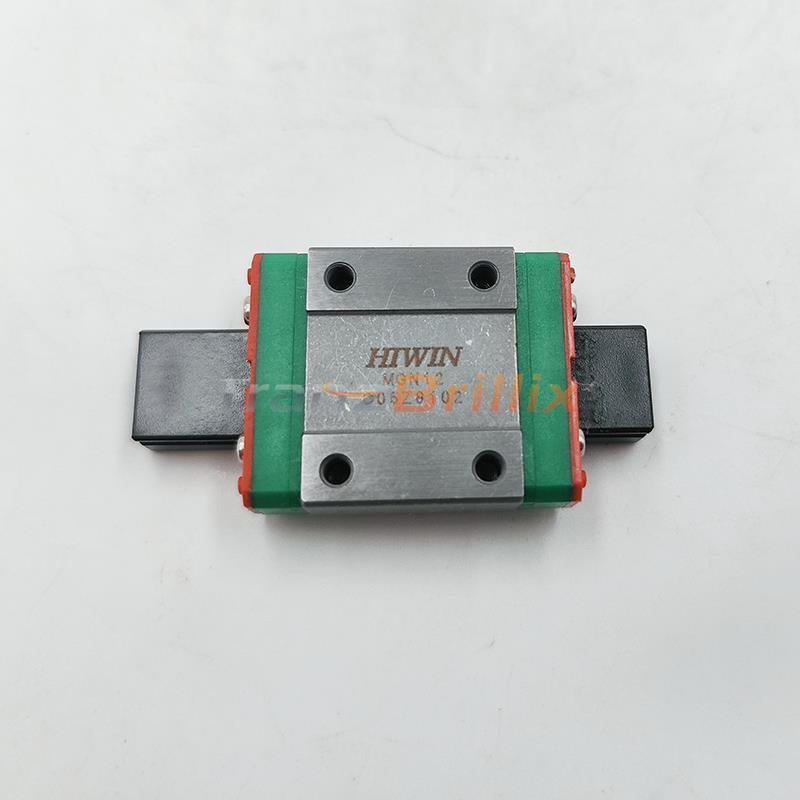

As part of HIWIN's renowned precision motion series, the MGN12C Miniature Linear Guideway delivers superior performance in a 12mm compact profile, combining HIWIN's engineering excellence with reliable linear motion technology. Designed for automation, medical devices, and precision instruments, this guideway features HIWIN's advanced recirculating ball system for smooth, low-friction movement, ensuring long-term accuracy even in demanding applications.
The MGN12C incorporates HIWIN's proprietary sealing technology to protect against dust and contaminants, enhancing durability in industrial and cleanroom environments. Its rigid yet lightweight design makes it ideal for robotics, optical positioning, and high-speed automation where space efficiency and precision are critical.
Backed by HIWIN's global reputation for quality, this linear bearing slide unit offers easy integration, low maintenance, and consistent performance, making it a trusted choice for engineers worldwide. Whether in semiconductor equipment, laboratory automation, or compact machinery, the HIWIN MGN12C ensures reliable motion control with the brand's signature precision and durability.
Note:1.The bottom seal is available for MGN & MGW 9, 12,14.15.
2. MG5 is only supplied with outer recirculation module.
Rolling circulation system: Block, rail, end cap and retainermodel No. |
block length(mm) |
preload classes |
bolt size |
weight(kg) |
MGN7C |
22.5 |
Z0/ZF/Z1 |
M2*0.4P*6L |
0.010 |
MGN7H |
30.8 |
Z0/ZF/Z1 |
M2*0.4P*6L |
0.015 |
MGN9C |
28.9 |
Z0/ZF/Z1 |
M3*0.5P*8L |
0.016 |
MGN9H |
39.9 |
Z0/ZF/Z1 |
M3*0.5P*8L |
0.026 |
MGN12C |
34.7 |
Z0/ZF/Z1 |
M3*0.5P*8L |
0.034 |
MGN12H |
45.4 |
Z0/ZF/Z1 |
M3*0.5P*8L |
0.054 |
MGN15C |
42.1 |
Z0/ZF/Z1 |
M3*0.5P*10L |
0.059 |
MGN15H |
58.8 |
Z0/ZF/Z1 |
M3*0.5P*10L |
0.092 |
