MGN9H Hiwin Linear Bearing MGN Type High Performance For CNC Machines

Name: MGN9H Hiwin Linear Bearing MGN Type High Performance For CNC Machines
Brand: Nanjing Tibi Ai Import and Export Trading Co., Ltd.
SKU: MGN9H
Price: 50.00 USD
Availability: InStock

Brand Name:	HIWIN
Model Number:	MGN9H
MOQ:	10
Price:	1-100 USD
Delivery Time:	1-7 work days
Payment Terms:	T/T,L/C,D/A,D/P,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA TAIWAN

Certification:

DE1924083895474

Series:

MGN

Model Size(mm):

9 Mm

No. Of Blocks Per Rail:

Rail Mounting Type:

R- Mounting From Top

Rail Length(mm):

Max 1200mm

Preload Class:

Z0- Very Light Preload , ZF- Light Clearancer

Material:

Std- Carbon Steel , M- Stainless Steel

Dust Protection:

SS-standard

Y -Symmetrical (E1＝E2) First Hole Dimension:

Y= Symmetrical （E1=E2)

Installation:

Easy

Application:

CNC Machines, 3D Printer

Smoothness:

Smooth

Packaging Details:

Small or with carton box, Bulk order with Wooden box

Supply Ability:

100000 pcs / per month

Highlight:

MGN9H Hiwin Linear Bearing

MGN9H hiwin bearing block

MGN Type Hiwin Linear Bearing

Product Description

①MGN Type HIWIN MGN9H Miniature Linear Guideway Hiwin Linear Bearing

The HIWIN MGN9H embodies the brand's legacy of precision engineering, delivering superior linear motion performance in compact applications. This miniature guideway features HIWIN's proprietary recirculation technology for smooth, reliable operation in demanding environments. Designed for space-constrained automation, medical equipment and precision instruments, it incorporates advanced sealing solutions to ensure long-term performance. Backed by HIWIN's rigorous quality standards and global technical support, the MGN9H offers versatile integration options across various motion systems. As a trusted solution from the industry-leading HIWIN brand, it represents the perfect balance of compact design and professional-grade reliability for critical applications.

②Drawing of MGN9H

MGN9H Hiwin Linear Bearing MGN Type High Performance For CNC Machines 0

③Model Number of MG Series

Note:1.The bottom seal is available for MGN & MGW 9, 12,14.15.
2. MG5 is only supplied with outer recirculation module.

④Construction of MGN Series

1.Rolling circulation system: Block, rail, end cap and retainer

2.Lubrication system: Grease nipple is available for MGN15, lubricated by grease gun.

3.Dust protection system: End seal, bottom seal (optional size 9,12,15), cap (size12,15)

⑤Features
1. Tiny and light weight, suitable for miniature equipment.

2. Gothic arch contact design can sustain loads from all directions and offer highrigidity and

high accuracy

3. Steel balls are held by a miniature retainer to avoid balls from falling out, evenwhen the

blocks are removed from the rail.

4.Interchangeable types are available in certain precision grades.

Block: we offers two types of linear guideways, flange and square types

Rail: we offers standard top mounting type

model No.	block length(mm)	preload classes	bolt size	weight(kg)
MGN7C	22.5	Z0/ZF/Z1	M20.4P6L	0.010
MGN7H	30.8	Z0/ZF/Z1	M20.4P6L	0.015
MGN9C	28.9	Z0/ZF/Z1	M30.5P8L	0.016
MGN9H	39.9	Z0/ZF/Z1	M30.5P8L	0.026
MGN12C	34.7	Z0/ZF/Z1	M30.5P8L	0.034
MGN12H	45.4	Z0/ZF/Z1	M30.5P8L	0.054
MGN15C	42.1	Z0/ZF/Z1	M30.5P10L	0.059
MGN15H	58.8	Z0/ZF/Z1	M30.5P10L	0.092

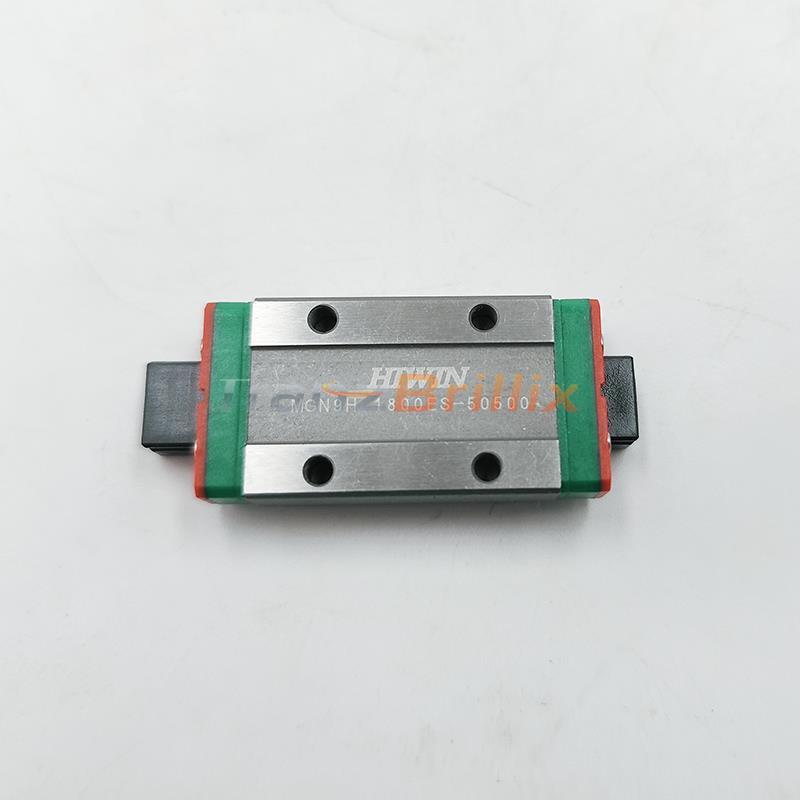

⑥Actual product photo
