MGN15H Precision Linear Slides High Accuracy For Medical Machine

Name: MGN15H Precision Linear Slides High Accuracy For Medical Machine
Brand: Nanjing Tibi Ai Import and Export Trading Co., Ltd.
SKU: MGN15H
Price: 50.00 USD
Availability: InStock

Brand Name:	OEM
Model Number:	MGN15H
MOQ:	10
Price:	1-100 USD
Delivery Time:	1-7 work days
Payment Terms:	T/T,L/C,D/A,D/P,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

DE1924083895474

Series:

MGN

Model Size(mm):

15 Mm

No. Of Blocks Per Rail:

Rail Mounting Type:

R- Mounting From Top

Rail Length(mm):

Max 1000mm

Preload Class:

Z0- Very Light Preload , ZF- Light Clearancer

Material:

Std- Carbon Steel , M- Stainless Steel

Dust Protection:

SS-standard

Y -Symmetrical (E1＝E2) First Hole Dimension:

Y= Symmetrical （E1=E2)

Installation:

Easy

Application:

CNC Machines, 3D Printer

Smoothness:

Smooth

Packaging Details:

Small or with carton box, Bulk order with Wooden box

Supply Ability:

100000 pcs / per month

Highlight:

MGN15H Precision Linear Slides

MGN15H hiwin linear slide

High Accuracy Precision Linear Slides

Product Description

①Miniature Linear Guideway MGN15H Linear Motion Bearing For Medical Machine

The MGN15H Miniature Linear Guideway is a high-precision linear motion system optimized for medical machinery applications, offering exceptional stability and contamination control in sensitive environments. With a 15mm rail width, this guideway combines compact design with high load capacity (radial and lateral) to support critical medical equipment such as robotic surgical arms, imaging systems, and automated diagnostic platforms. Its hardened steel rail and polymer-reinforced carriage achieve micron-level positioning accuracy through precision-ground raceways and optimized ball circulation – essential for biopsy automation and micro-dosing instruments. The guideway features a corrosion-resistant coating and pre-lubricated components, enabling maintenance-free operation compliant with ISO Class 5 cleanroom standards. Specialized seals minimize particulate generation while resisting chemical sterilization agents, ensuring compatibility with MRI suites and operating theaters. The MGN15H's low-friction design reduces heat generation during high-frequency movements, crucial for thermal-sensitive procedures like in-vitro fertilization robotics. Standardized mounting interfaces allow rapid integration with motorized stages and sensor arrays in portable medical devices. HIWIN-certified manufacturing processes guarantee ≤0.5μm/m positioning repeatability, meeting stringent requirements for radiation therapy positioning systems and DNA sequencing equipment.

②MGN15H drawing

MGN15H Precision Linear Slides High Accuracy For Medical Machine 0

③Model Number of MG Series

Note:1.The bottom seal is available for MGN & MGW 9, 12,14.15.
2. MG5 is only supplied with outer recirculation module.

④Construction of MGN Series

1.Rolling circulation system: Block, rail, end cap and retainer

2.Lubrication system: Grease nipple is available for MGN15, lubricated by grease gun.

3.Dust protection system: End seal, bottom seal (optional size 9,12,15), cap (size12,15)

⑤Features
1. Tiny and light weight, suitable for miniature equipment.

2. Gothic arch contact design can sustain loads from all directions and offer highrigidity and

high accuracy

3. Steel balls are held by a miniature retainer to avoid balls from falling out, evenwhen the

blocks are removed from the rail.

4.Interchangeable types are available in certain precision grades.

Block: we offers two types of linear guideways, flange and square types

Rail: we offers standard top mounting type

model No.	block length(mm)	preload classes	bolt size	weight(kg)
MGN7C	22.5	Z0/ZF/Z1	M20.4P6L	0.010
MGN7H	30.8	Z0/ZF/Z1	M20.4P6L	0.015
MGN9C	28.9	Z0/ZF/Z1	M30.5P8L	0.016
MGN9H	39.9	Z0/ZF/Z1	M30.5P8L	0.026
MGN12C	34.7	Z0/ZF/Z1	M30.5P8L	0.034
MGN12H	45.4	Z0/ZF/Z1	M30.5P8L	0.054
MGN15C	42.1	Z0/ZF/Z1	M30.5P10L	0.059
MGN15H	58.8	Z0/ZF/Z1	M30.5P10L	0.092

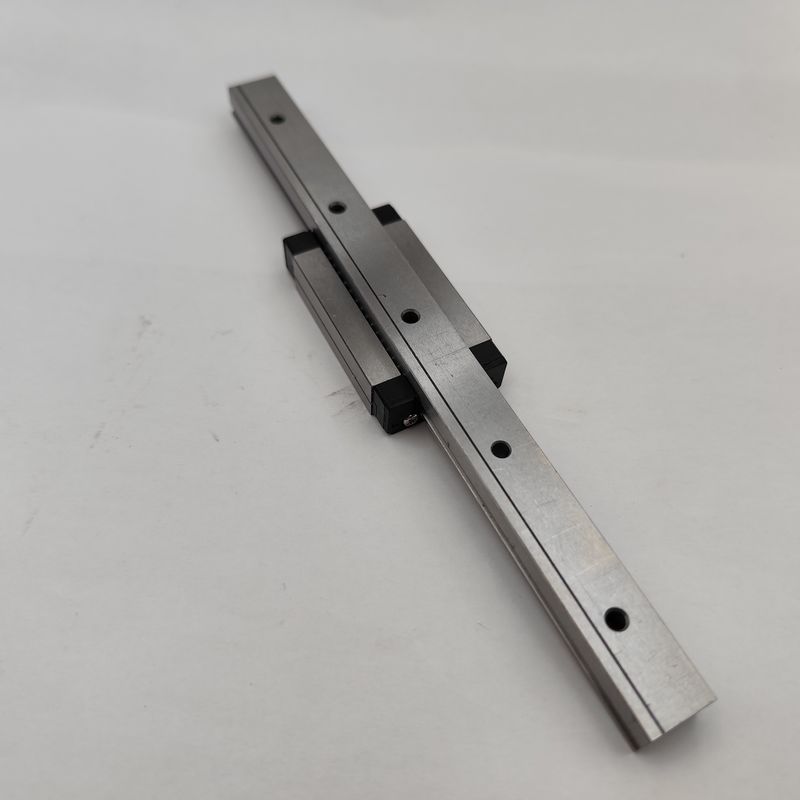

⑥Actual product photo

⑦Measurement drawing

⑧We also can provide the OEM service on the block color

MGN15H Precision Linear Slides High Accuracy For Medical Machine 6
