15mm Size 3D Printed Linear Rails MGN15C Interchangeable Type Linear Guideway

Name: 15mm Size 3D Printed Linear Rails MGN15C Interchangeable Type Linear Guideway
Brand: Nanjing Tibi Ai Import and Export Trading Co., Ltd.
SKU: MGN15C
Price: 50.00 USD
Availability: InStock

Brand Name:	OEM
Model Number:	MGN15C
MOQ:	10
Price:	1-100 USD
Delivery Time:	1-7 work days
Payment Terms:	T/T,L/C,D/A,D/P,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

DE1924083895474

Series:

MGN

Model Size(mm):

15 Mm

No. Of Blocks Per Rail:

Rail Mounting Type:

R- Mounting From Top

Rail Length(mm):

Max 1000mm

Preload Class:

Z0- Very Light Preload , ZF- Light Clearancer

Material:

Std- Carbon Steel , M- Stainless Steel

Dust Protection:

SS-standard

Y -Symmetrical (E1＝E2) First Hole Dimension:

Y= Symmetrical （E1=E2)

Installation:

Easy

Application:

CNC Machines, 3D Printer

Smoothness:

Smooth

Packaging Details:

Small or with carton box, Bulk order with Wooden box

Supply Ability:

100000 pcs / per month

Highlight:

MGN15C 3D Printed Linear Rails

MGN15C linear guide systems

Interchangeable 3D Printed Linear Rails

Product Description

①15mm Miniature Linear Guideway MGN15C Interchangeable Type Linear Guideway

The 15mm Miniature Linear Guideway MGN15C Interchangeable Type Linear Guideway is a high-precision motion system optimized for applications requiring enhanced load capacity within compact spatial constraints. Its 15mm height profile strikes a balance between miniaturization and structural robustness, making it ideal for heavy-duty automation equipment, CNC machining centers, and industrial robotics where interchangeability and standardized mounting are critical . The system integrates hardened steel rails and interchangeable carriages (MGN15C/H variants) with precision-ground raceways, delivering radial/lateral load capacities up to 30% higher than smaller 9mm/12mm counterparts while maintaining micron-level positioning accuracy . A dual-row ball recirculation design ensures low-friction operation supported by corrosion-resistant coatings and pre-lubricated components for maintenance-free performance in harsh environments like semiconductor cleanrooms . Its standardized interface allows seamless integration with modular machinery and retrofitting of existing systems, particularly in 3D printing, optical alignment, and automated assembly lines where 15mm-scale rigidity and vibration damping are paramount . The MGN15C series making it interchangeable with major industrial guideway standards without compromising installation efficiency.

②MGN15C drawing

15mm Size 3D Printed Linear Rails MGN15C Interchangeable Type Linear Guideway 0

③Model Number of MG Series

Note:1.The bottom seal is available for MGN & MGW 9, 12,14.15.
2. MG5 is only supplied with outer recirculation module.

④Construction of MGN Series

1.Rolling circulation system: Block, rail, end cap and retainer

2.Lubrication system: Grease nipple is available for MGN15, lubricated by grease gun.

3.Dust protection system: End seal, bottom seal (optional size 9,12,15), cap (size12,15)

⑤Features
1. Tiny and light weight, suitable for miniature equipment.

2. Gothic arch contact design can sustain loads from all directions and offer highrigidity and

high accuracy

3. Steel balls are held by a miniature retainer to avoid balls from falling out, evenwhen the

blocks are removed from the rail.

4.Interchangeable types are available in certain precision grades.

Block: we offers two types of linear guideways, flange and square types

Rail: we offers standard top mounting type

model No.	block length(mm)	preload classes	bolt size	weight(kg)
MGN7C	22.5	Z0/ZF/Z1	M20.4P6L	0.010
MGN7H	30.8	Z0/ZF/Z1	M20.4P6L	0.015
MGN9C	28.9	Z0/ZF/Z1	M30.5P8L	0.016
MGN9H	39.9	Z0/ZF/Z1	M30.5P8L	0.026
MGN12C	34.7	Z0/ZF/Z1	M30.5P8L	0.034
MGN12H	45.4	Z0/ZF/Z1	M30.5P8L	0.054
MGN15C	42.1	Z0/ZF/Z1	M30.5P10L	0.059
MGN15H	58.8	Z0/ZF/Z1	M30.5P10L	0.092

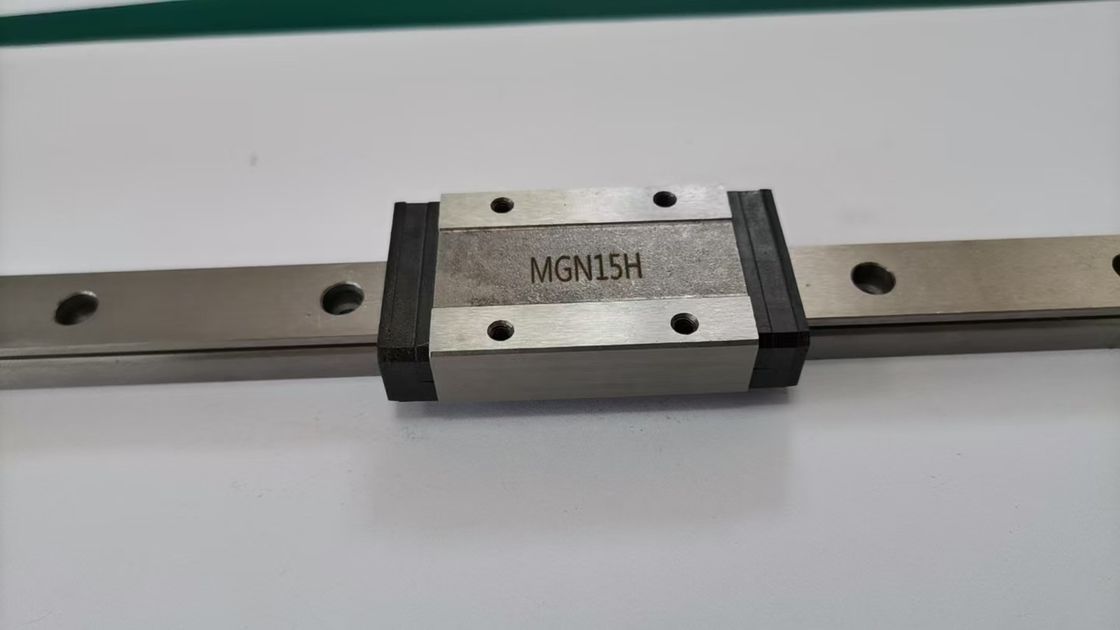

⑥Actual product photo

⑦Measurement drawing

⑧We also can provide the OEM service on the block color

15mm Size 3D Printed Linear Rails MGN15C Interchangeable Type Linear Guideway 6
