Stainless Steel 3D Printed Linear Rails MGN12C Linear Guide Slide Rail

Name: Stainless Steel 3D Printed Linear Rails MGN12C Linear Guide Slide Rail
Brand: Nanjing Tibi Ai Import and Export Trading Co., Ltd.
SKU: MGN12C
Price: 50.00 USD
Availability: InStock

Brand Name:	OEM
Model Number:	MGN12C
MOQ:	10
Price:	1-100 USD
Delivery Time:	1-7 work days
Payment Terms:	T/T,L/C,D/A,D/P,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

DE1924083895474

Series:

MGN

Model Size(mm):

12 Mm

No. Of Blocks Per Rail:

Rail Mounting Type:

R- Mounting From Top

Rail Length(mm):

Max 1000mm

Preload Class:

Z0- Very Light Preload , ZF- Light Clearancer

Material:

Std- Carbon Steel , M- Stainless Steel

Dust Protection:

SS-standard

Y -Symmetrical (E1＝E2) First Hole Dimension:

Y= Symmetrical （E1=E2)

Installation:

Easy

Application:

CNC Machines, 3D Printer

Smoothness:

Smooth

Packaging Details:

Small or with carton box, Bulk order with Wooden box

Supply Ability:

100000 pcs / per month

Highlight:

Stainless Steel 3D Printed Linear Rails

Stainless Steel linear motion slides

MGN12C 3D Printed Linear Rails

Product Description

①Stainless Steel Miniature Linear Guideway MGN12C Linear Guide Slide Rail

The Stainless Steel Miniature Linear Guideway MGN12C Linear Guide Slide Rail is a corrosion-resistant precision motion component designed for applications demanding compact size and environmental durability. With a 12mm profile height, it integrates seamlessly into space-sensitive equipment such as semiconductor manufacturing tools, medical diagnostic devices, and 3D printing systems. Its stainless steel construction (rails and blocks) ensures rust-free operation in high-humidity or sterile environments like cleanrooms and food processing lines. The Gothic-arch four-point contact design delivers high rigidity and multi-directional load capacity, critical for robotic arms and optical alignment mechanisms requiring micron-level positioning accuracy. Pre-lubricated and maintenance-free, it supports high-speed sliding with minimal vibration, making it ideal for laser engravers, automated conveyor systems, and miniature CNC routers where 12mm-scale integration is essential. Standardized mounting slots simplify installation in mask production machinery and micro-assembly platforms, while its lightweight yet durable structure enhances energy efficiency in portable industrial automation solutions

②MGN12C drawing

Stainless Steel 3D Printed Linear Rails MGN12C Linear Guide Slide Rail 0

③Model Number of MG Series

Note:1.The bottom seal is available for MGN & MGW 9, 12,14.15.
2. MG5 is only supplied with outer recirculation module.

④Construction of MGN Series

1.Rolling circulation system: Block, rail, end cap and retainer

2.Lubrication system: Grease nipple is available for MGN15, lubricated by grease gun.

3.Dust protection system: End seal, bottom seal (optional size 9,12,15), cap (size12,15)

⑤Features
1. Tiny and light weight, suitable for miniature equipment.

2. Gothic arch contact design can sustain loads from all directions and offer highrigidity and

high accuracy

3. Steel balls are held by a miniature retainer to avoid balls from falling out, evenwhen the

blocks are removed from the rail.

4.Interchangeable types are available in certain precision grades.

Block: we offers two types of linear guideways, flange and square types

Rail: we offers standard top mounting type

model No.	block length(mm)	preload classes	bolt size	weight(kg)
MGN7C	22.5	Z0/ZF/Z1	M20.4P6L	0.010
MGN7H	30.8	Z0/ZF/Z1	M20.4P6L	0.015
MGN9C	28.9	Z0/ZF/Z1	M30.5P8L	0.016
MGN9H	39.9	Z0/ZF/Z1	M30.5P8L	0.026
MGN12C	34.7	Z0/ZF/Z1	M30.5P8L	0.034
MGN12H	45.4	Z0/ZF/Z1	M30.5P8L	0.054
MGN15C	42.1	Z0/ZF/Z1	M30.5P10L	0.059
MGN15H	58.8	Z0/ZF/Z1	M30.5P10L	0.092

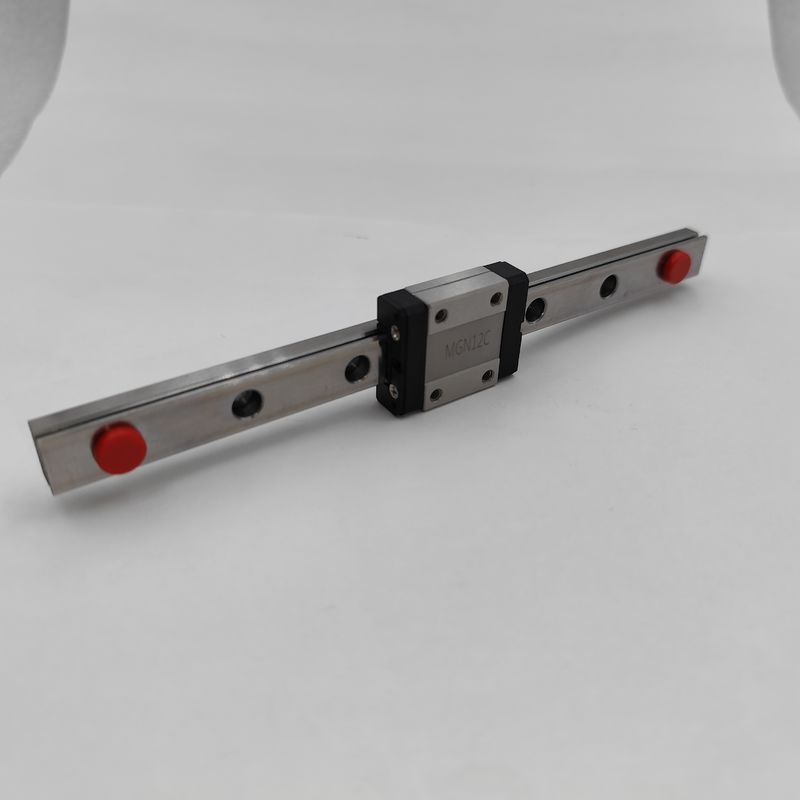

⑥Actual product photo

⑦Measurement drawing

⑧We also can provide the OEM service on the block color

Stainless Steel 3D Printed Linear Rails MGN12C Linear Guide Slide Rail 6

⑧top product recommendation
